IRM-20-24 - Mean Well

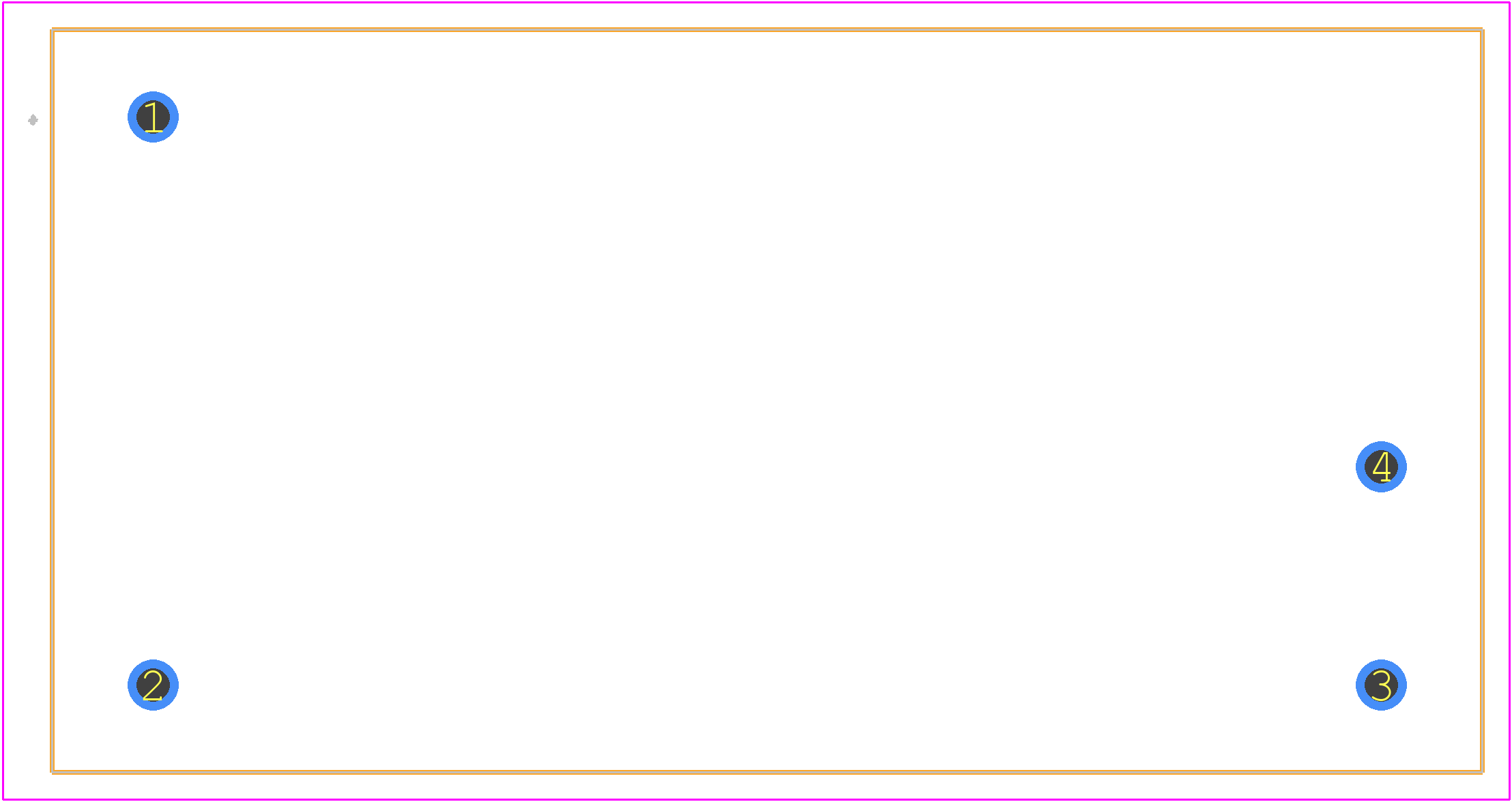

IRM-20-24 Details

• Manufacturer Part Number:

  IRM-20-24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  Module-4

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  7.4

• Additional Feature:

  ALSO OPERATE WITH 120-430VDC

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB, CE, EAC, EN, IEC, UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  85%

• Input Voltage-Max:

  305 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-XDMA-P4

• Length:

  52.4 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  0.9 A

• Output Voltage-Max:

  24.6 V

• Output Voltage-Min:

  23.4 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OUTPUT OVER VOLTAGE; OVER LOAD

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  24 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  21.6 W

• Trim/Adjustable Output:

  NO

• Width:

  27.2 mm
