IRM-56384 - Everlight

Description: SIP-3-2.54mm Infrared Remote Receiver (IRM) ROHS

Download IRM-56384 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

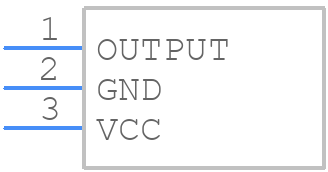

IRM-56384 - Everlight - PCB symbol
click to zoom
PCB Footprints

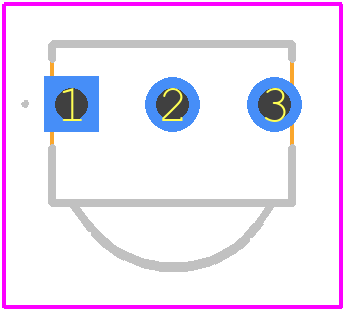

IRM-56384 - Everlight PCB footprint - Other - Other - SIP-3
click to zoom

IRM-56384 Details

  • Manufacturer Part Number:

    IRM-56384

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Everlight Electronics Co Ltd

  • Additional Feature:

    CMOS COMPATIBLE

  • Application:

    AIR CONDITIONER; CD; REMOTE CONTROL

  • Configuration:

    SINGLE

  • Infrared Range:

    YES

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    LINEAR OUTPUT PHOTO IC

  • Packing Method:

    BOX

  • Shape:

    ROUND

  • Size:

    5 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    NO

IRM-56384 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for IRM-56384 is -40°C to 100°C.
  • Yes, IRM-56384 is compatible with lead-free soldering, with a peak reflow temperature of 260°C.
  • The MSL of IRM-56384 is 3, which means it can withstand a maximum of 168 hours of exposure to 30°C/60% RH before soldering.
  • Yes, IRM-56384 is suitable for high-reliability applications, such as automotive, industrial, and medical devices, due to its high-quality manufacturing process and rigorous testing.
  • The typical forward voltage drop of IRM-56384 is 1.2V at 1A, but this value can vary depending on the operating conditions and temperature.
