IRS21064PBF - Infineon

Description: Infineon IRS21064PBF Dual MOSFET Power Driver, 0.6A 14-Pin, PDIP

Download IRS21064PBF Model
Schematic

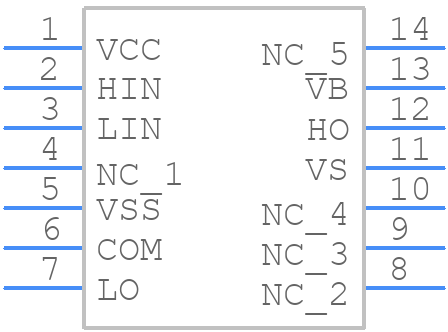

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

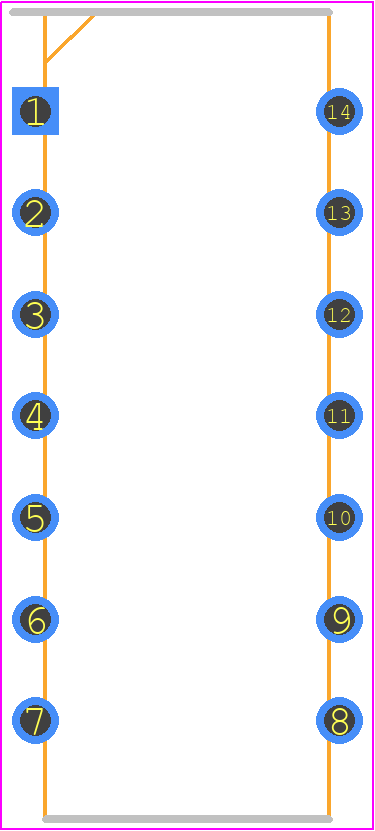

IRS21064PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP
click to zoom
3D Models
IRS21064PBF - Infineon  - 3D model - Dual-In-Line Packages - 14-Lead PDIP
click to zoom

IRS21064PBF Details

  • Manufacturer Part Number:

    IRS21064PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.28 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    7.62 mm

IRS21064PBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as over-temperature protection (OTP) and thermal shutdown (TSD).
  • The maximum allowed voltage on the bootstrap capacitor is typically 1.5 times the maximum input voltage, but it's recommended to check the specific capacitor datasheet and follow the guidelines in the IRS21064PBF datasheet.
  • To troubleshoot issues with the IRS21064PBF, start by checking the power supply, input voltage, and output voltage. Verify that the device is properly configured and that the bootstrap capacitor is correctly sized. Use oscilloscopes and logic analyzers to monitor the device's behavior and identify potential issues.
  • Yes, the IRS21064PBF is suitable for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design guidelines, perform thorough testing and validation, and ensure compliance with relevant safety standards and regulations.
