IRS21064STRPBF - Infineon

Description: INFINEON - IRS21064STRPBF - MOSFET/IGBT DRIVER, HIGH/LOW SIDE, NSOIC

Download IRS21064STRPBF Model

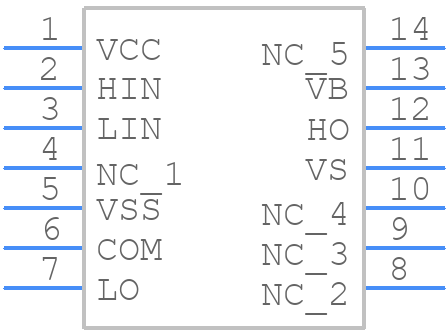

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRS21064STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead SOIC
click to zoom
3D Models
IRS21064STRPBF - Infineon  - 3D model - Small Outline Packages - 14-Lead SOIC
click to zoom

IRS21064STRPBF Details

  • Manufacturer Part Number:

    IRS21064STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.15

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.28 µs

  • Turn-on Time:

    0.3 µs

  • Width:

    3.9 mm

IRS21064STRPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a metal plate for efficient heat dissipation.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider using a thermistor or thermocouple to monitor the device temperature.
  • The maximum allowed voltage on the bootstrap capacitor is 35V. Exceeding this voltage may damage the device.
  • Use a shielded enclosure, keep the layout compact, and use a common-mode choke or ferrite bead to filter the input and output lines. Also, ensure proper grounding and decoupling.
  • A 10uF to 22uF ceramic or film capacitor with a voltage rating of 50V or higher is recommended. The capacitor should be placed close to the device and connected between the input pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS21064STRPBF Overview

Use the download button to access the IRS21064STRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21, or try a keyword search, such as MOSFET Drivers

Parts related to IRS21064STRPBF

Showing 0 results

IRS21064STRPBF Alternates

Showing results

Image Part Number Model
Part Image IRS21064SPBF Infineon Technologies AG

Half Bridge Based IGBT/MOSFET Driver, 0.6A, CMOS, PDSO14
