Infineon provides a recommended PCB layout in the application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure proper airflow. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
The maximum allowed voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.
Yes, the IRS21084STRPBF can be used in a half-bridge configuration. However, it's essential to ensure that the device is properly configured and biased to prevent shoot-through currents and ensure reliable operation.
To troubleshoot issues with the IRS21084STRPBF, start by checking the power supply, input signals, and output waveforms. Use an oscilloscope to verify the input and output signals, and check for any signs of overheating or damage. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS21084STRPBF Overview

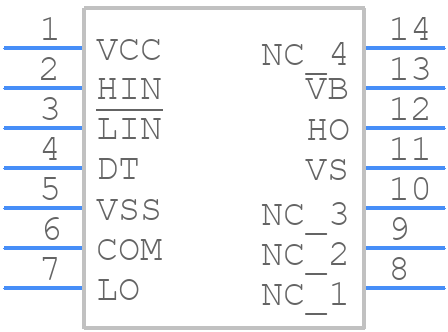

Use the download button to access the IRS21084STRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21,
or try a keyword search, such as MOSFET Drivers
