IRS2110PBF - Infineon

Description: Infineon IRS2110PBF Dual High and Low Side MOSFET Power Driver, 2.5A, 10 → 20 V, PDIP 14-Pin

Download IRS2110PBF Model

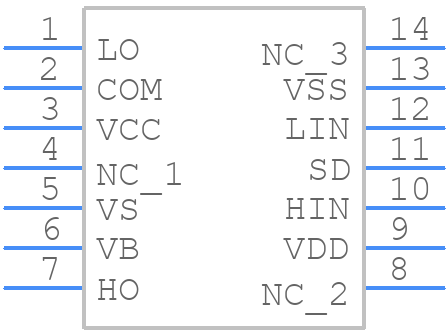

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

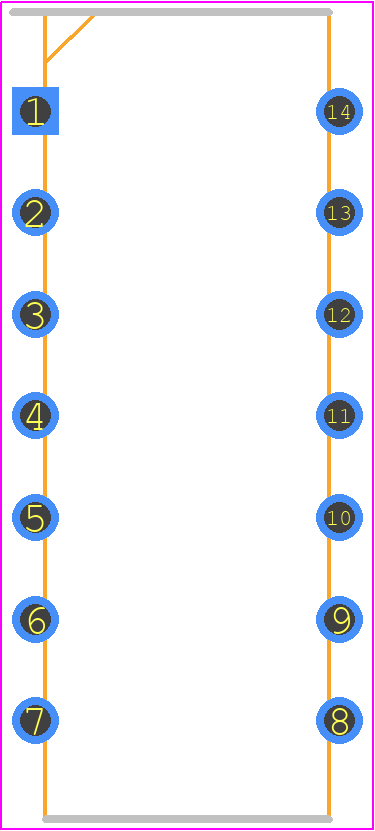

IRS2110PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP
click to zoom
3D Models
IRS2110PBF - Infineon  - 3D model - Dual-In-Line Packages - 14-Lead PDIP
click to zoom

IRS2110PBF Details

  • Manufacturer Part Number:

    IRS2110PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.16 µs

  • Width:

    7.62 mm

IRS2110PBF Frequently Asked Questions (FAQs)

  • The IRS2110PBF can operate up to 500 kHz, but the recommended operating frequency is up to 200 kHz for optimal performance.
  • The bootstrap capacitor should be charged through a resistor (e.g., 1 kΩ) connected between the bootstrap pin and the high-side supply voltage (VCC). The capacitor value should be at least 10 nF to ensure proper charging.
  • The recommended dead time is typically around 100-200 ns to prevent shoot-through currents and ensure reliable operation.
  • Use a voltage regulator or a voltage supervisor to ensure the input voltage (VCC) is within the recommended range (10-20 V). Add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
  • The maximum allowable power dissipation is dependent on the ambient temperature and the thermal resistance of the package. Refer to the thermal derating curve in the datasheet to determine the maximum power dissipation for your specific application.
