The recommended PCB layout for optimal performance involves keeping the high-frequency switching nodes (e.g., bootstrap capacitor and high-side FET) as close as possible to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The bootstrap capacitor value depends on the specific application requirements, such as the switching frequency, output voltage, and current. A general guideline is to choose a capacitor with a value between 10nF to 100nF, with a voltage rating of at least 2x the output voltage. A higher value capacitor can help reduce the voltage ripple on the bootstrap node, but may increase the overall system cost and size.
The maximum allowed dead time between the high-side and low-side FETs is not explicitly specified in the datasheet, but it is generally recommended to keep it as short as possible (typically < 10ns) to minimize the shoot-through current and ensure reliable operation. A longer dead time can lead to increased power losses and reduced efficiency.
Yes, the IRS2117PBF can be used in a half-bridge configuration, but it requires additional external components, such as a bootstrap diode and a capacitor, to ensure proper operation. The half-bridge configuration can be useful for applications that require a single-switch topology, but it may have limited flexibility and performance compared to a full-bridge configuration.
The IRS2117PBF has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features, but additional external protection components, such as TVS diodes and fuses, may be necessary to ensure reliable operation in harsh environments. It is also recommended to implement a robust fault detection and protection scheme in the system design to prevent damage to the IC and other components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS2117PBF Overview

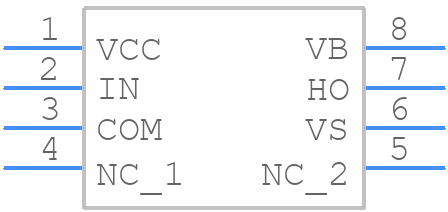

Use the download button to access the IRS2117PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21,
or try a keyword search, such as MOSFET Drivers
