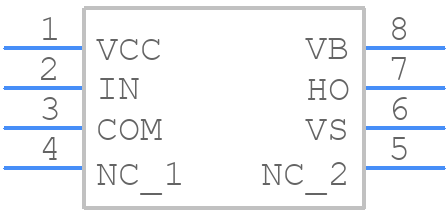

IRS2117SPBF footprint, schematic symbol and 3D model by Infineon

Symbol

PCB Footprints

3D Models

IRS2117SPBF Details

The IRS2117SPBF can operate up to 600 kHz, but the recommended operating frequency is up to 400 kHz for optimal performance.
The bootstrap capacitor should be charged through a resistor (e.g., 1 kΩ) connected between the bootstrap pin and the high-side supply voltage (VCC). The capacitor value should be at least 10 nF to ensure proper charging.
The deadtime (DT) pin is used to adjust the deadtime between the high-side and low-side switches. A shorter deadtime reduces switching losses, but may increase the risk of shoot-through currents. A longer deadtime reduces shoot-through currents, but increases switching losses.
The IRS2117SPBF has a built-in overcurrent protection (OCP) feature. The OCP threshold can be set using an external resistor (R_OCP) connected between the OCP pin and ground. The device will shut down if the current exceeds the set threshold.
A good layout and PCB design for the IRS2117SPBF should minimize parasitic inductance and capacitance. Keep the high-frequency loops small, use a solid ground plane, and place the bootstrap capacitor close to the IC. Use a 4-layer PCB with a dedicated power plane and a separate ground plane.
