IRS2117STRPBF - Infineon

Description: Gate Drivers Sngl Hi Sd Drvr NonInvrt Inpt

Download IRS2117STRPBF Model
Schematic

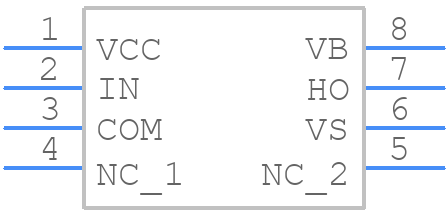

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRS2117STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead SOIC HEIGHT 1.75
click to zoom
3D Models
IRS2117STRPBF - Infineon  - 3D model - Small Outline Packages - 8 Lead SOIC HEIGHT 1.75
click to zoom

IRS2117STRPBF Details

  • Manufacturer Part Number:

    IRS2117STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.15

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.18 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

IRS2117STRPBF Frequently Asked Questions (FAQs)

  • The IRS2117STRPBF can operate up to 600 kHz, but the recommended operating frequency is up to 400 kHz for optimal performance.
  • To ensure the bootstrap capacitor is properly charged, make sure to follow the recommended bootstrap capacitor value and charging resistor value, and ensure the high-side driver is properly biased.
  • The recommended dead time between the high-side and low-side drivers is typically around 100-200 ns, but this can vary depending on the specific application and switching frequency.
  • To protect the IRS2117STRPBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended operating range.
  • The maximum allowable power dissipation of the IRS2117STRPBF is dependent on the specific application and thermal design, but a general guideline is to keep the junction temperature below 150°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
