IRS2118STRPBF - Infineon

Description: Gate Drivers Sngl Hi Sd Drvr NonInvrt Inpt

Download IRS2118STRPBF Model

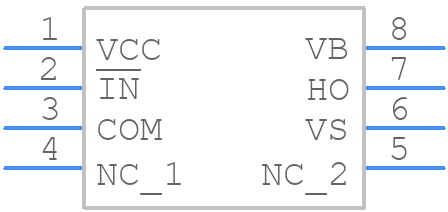

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IRS2118STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC
click to zoom
3D Models
IRS2118STRPBF - Infineon  - 3D model - Small Outline Packages - 8-Lead SOIC
click to zoom

IRS2118STRPBF Details

  • Manufacturer Part Number:

    IRS2118STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7.15

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.18 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    3.9 mm

IRS2118STRPBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS2118STRPBF is 500 kHz, but it can be operated up to 1 MHz with reduced performance.
  • To ensure the bootstrap capacitor is properly charged, make sure to follow the recommended bootstrap capacitor value and charging resistor value, and ensure the high-side driver is enabled before the low-side driver.
  • The recommended dead time between the high-side and low-side drivers is typically around 100-200 ns to prevent shoot-through current.
  • To protect the IRS2118STRPBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the supply voltage is within the recommended range of 10-20V.
  • The maximum allowable power dissipation of the IRS2118STRPBF is 2.5W, and it is recommended to keep the junction temperature below 150°C to ensure reliable operation.
