IRS2127PBF - Infineon

Description: Gate Drivers Cur Sens 1Ch Drvr 600V Gt Drv 12-20V

Download IRS2127PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

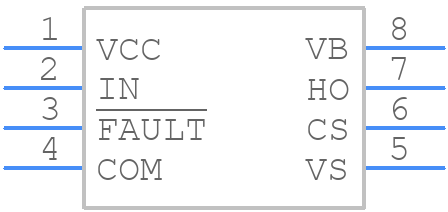

IRS2127PBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS2127PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead PDIP_
click to zoom
3D Models
IRS2127PBF - Infineon - 3D model - Dual-In-Line Packages - 8-Lead PDIP_
click to zoom

IRS2127PBF Details

  • Manufacturer Part Number:

    IRS2127PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    0.6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.2 µs

  • Turn-on Time:

    0.2 µs

  • Width:

    7.62 mm

IRS2127PBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
  • The maximum allowed voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range to prevent damage or malfunction.
  • To troubleshoot issues with the IRS2127PBF, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify that the input signals are correct and within the specified voltage ranges. Use an oscilloscope to check the output waveforms and verify that they match the expected behavior. If issues persist, consult the datasheet and application notes for guidance or contact Infineon's technical support.
  • The IRS2127PBF is a qualified device for automotive and industrial applications, and it meets the requirements for high-reliability and safety-critical applications. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific requirements of the application.
