IRS2183PBF - Infineon

Description: Infineon IRS2183PBF Dual Half Bridge MOSFET Power Driver, 2.3A 8-Pin, PDIP

Download IRS2183PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

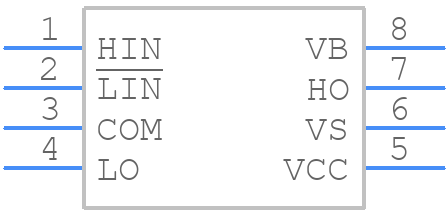

Symbol
IRS2183PBF - Infineon - PCB symbol
click to zoom

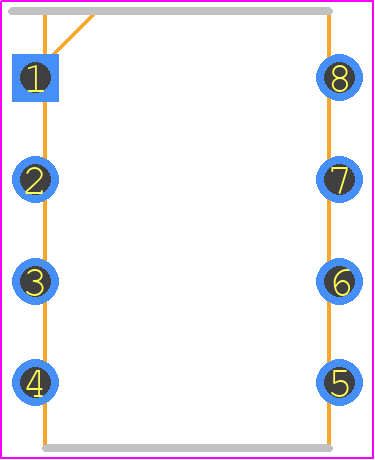

PCB Footprints
IRS2183PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - IRS2183
click to zoom
3D Models
IRS2183PBF - Infineon - 3D model - Dual-In-Line Packages - IRS2183
click to zoom

IRS2183PBF Details

  • Manufacturer Part Number:

    IRS2183PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.88 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    1.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.33 µs

  • Turn-on Time:

    0.27 µs

  • Width:

    7.62 mm

IRS2183PBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS2183PBF is 500 kHz, but it can be extended up to 1 MHz with proper PCB design and layout.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as using a heat sink, ensuring good airflow, and keeping the junction temperature below 150°C.
  • The recommended dead time for the IRS2183PBF is typically between 100 ns to 500 ns, depending on the specific application and switching frequency.
  • Yes, the IRS2183PBF can be used in a half-bridge configuration, but it requires additional external circuitry to ensure proper operation and to prevent shoot-through currents.
  • To protect the IRS2183PBF from overvoltage and undervoltage conditions, it is recommended to use external voltage regulators, such as TVS diodes or voltage supervisors, to ensure that the input voltage remains within the recommended operating range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS2183PBF Overview

Use the download button to access the IRS2183PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21, or try a keyword search, such as MOSFET Drivers
