Infineon provides a recommended PCB layout in their application note AN-1071, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
The maximum allowed voltage on the VCC pin is 20V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range of 12V to 15V.
To protect the device from EOS, it's recommended to use a suitable TVS (transient voltage suppressor) diode or a voltage clamp circuit to limit voltage transients on the input pins. Additionally, a fuse or a current limiter can be used to prevent overcurrent conditions.
The recommended gate drive voltage for optimal performance is 12V to 15V, as specified in the datasheet. Using a higher gate drive voltage can improve switching performance, but may also increase power consumption and heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS21853SPBF Overview

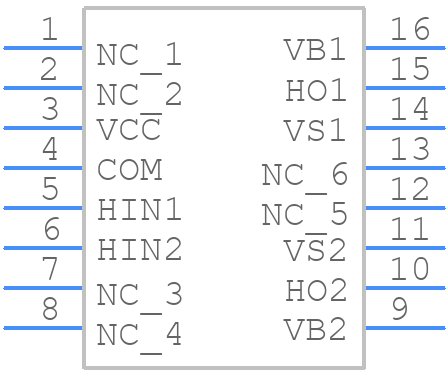

Use the download button to access the IRS21853SPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21,
or try a keyword search, such as MOSFET Drivers
