IRS21864PBF - Infineon

Description: International Rectifier IRS21864PBF, Dual MOSFET Power Driver 4A, 10 → 20 V, Non-Inverting, 14-Pin PDIP

Download IRS21864PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

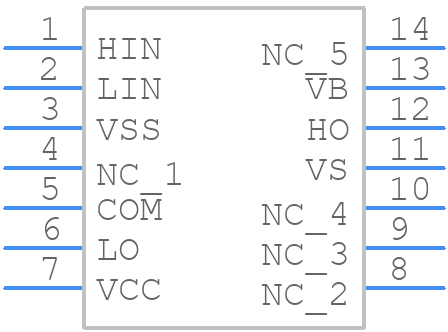

IRS21864PBF - Infineon - PCB symbol
click to zoom
PCB Footprints

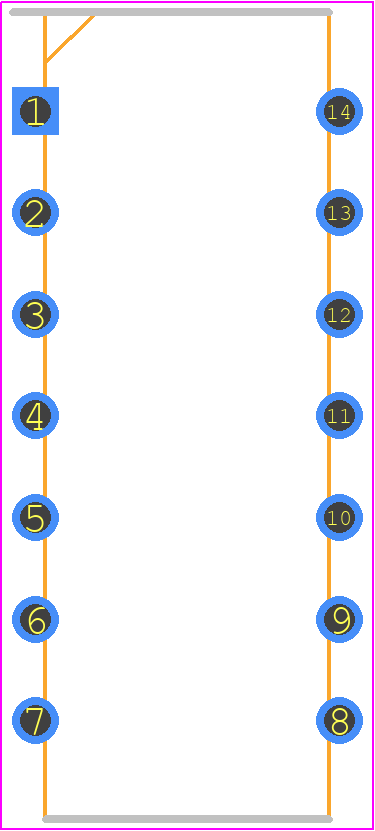

IRS21864PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP
click to zoom
3D Models
IRS21864PBF - Infineon - 3D model - Dual-In-Line Packages - 14-Lead PDIP
click to zoom

IRS21864PBF Details

  • Manufacturer Part Number:

    IRS21864PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.25 µs

  • Turn-on Time:

    0.25 µs

  • Width:

    7.62 mm

IRS21864PBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS21864PBF is 600 kHz, but it can be adjusted up to 1 MHz with an external resistor.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including proper heat sinking and thermal management.
  • The minimum input voltage required for the IRS21864PBF to operate is 10.5 V, but it is recommended to use a minimum of 12 V for optimal performance.
  • Yes, the IRS21864PBF is designed to handle high inrush currents and can be used in applications such as motor control and power supplies.
  • To protect the IRS21864PBF from overvoltage and undervoltage conditions, it is recommended to use external voltage protection circuits, such as voltage regulators and overvoltage protection devices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS21864PBF Overview

Use the download button to access the IRS21864PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS21, or try a keyword search, such as MOSFET Drivers
