IRS21864SPBF - Infineon

Description: Driver 600V 4A 2-OUT High and Low Side Non-Inv 14-Pin SOIC N Tube

Download IRS21864SPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

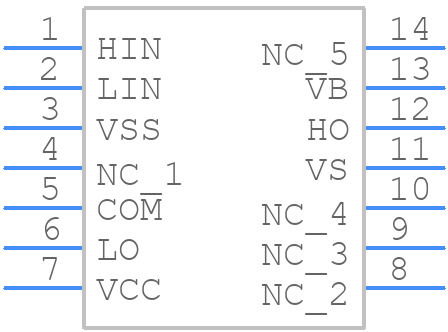

Symbol
IRS21864SPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS21864SPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOICN14
click to zoom
3D Models
IRS21864SPBF - Infineon - 3D model - Small Outline Packages - SOICN14
click to zoom

IRS21864SPBF Details

  • Manufacturer Part Number:

    IRS21864SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.25 µs

  • Turn-on Time:

    0.25 µs

  • Width:

    3.9 mm

IRS21864SPBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS21864SPBF is 600 kHz, but it can be adjusted up to 1 MHz with an external resistor.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including proper heat sinking and thermal management.
  • To minimize EMI, it is recommended to follow the layout and routing guidelines provided in the application note AN-1145, including keeping the high-frequency nodes away from the low-frequency nodes and using a solid ground plane.
  • To troubleshoot issues with the IRS21864SPBF, it is recommended to follow the troubleshooting guidelines provided in the application note AN-1145, including checking the input voltage, output voltage, and current sense signals.
  • Yes, the IRS21864SPBF can be used in applications with high-voltage inputs up to 600V, but it is recommended to follow the guidelines provided in the datasheet for high-voltage operation, including proper snubber design and layout.
