IRS2330DSPBF - Infineon

Description: Infineon IRS2330DSPBF Dual MOSFET Power Driver 28-Pin, SOIC W

Download IRS2330DSPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

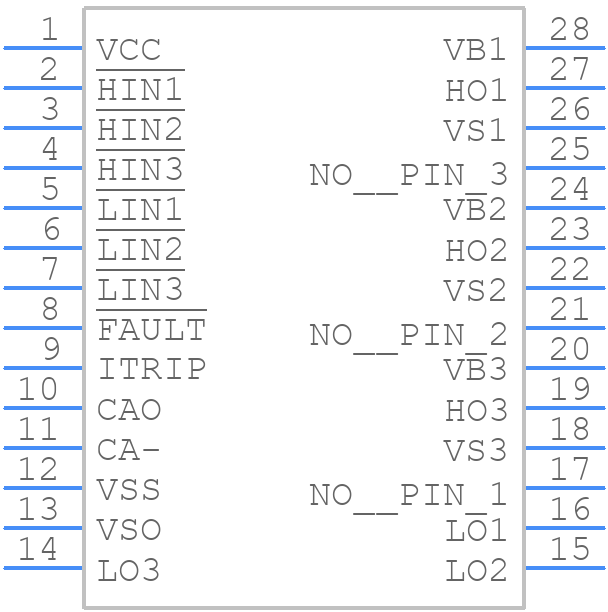

Symbol
IRS2330DSPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS2330DSPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 1869871
click to zoom
3D Models
IRS2330DSPBF - Infineon - 3D model - Small Outline Packages - 1869871
click to zoom

IRS2330DSPBF Details

  • Manufacturer Part Number:

    IRS2330DSPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    2 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.7 µs

  • Turn-on Time:

    0.7 µs

  • Width:

    7.5 mm

IRS2330DSPBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout guide in their application note AN-1133, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The IRS2330DSPBF is a highly configurable device, and Infineon provides a software development kit (SDK) that includes a graphical user interface (GUI) for configuring the device for different motor types and applications. The SDK also includes example code and documentation to help with the configuration process.
  • The IRS2330DSPBF has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • Infineon provides a troubleshooting guide in their application note AN-1134, which includes a step-by-step process for identifying and resolving common issues with the IRS2330DSPBF. Additionally, the device has built-in diagnostic features, such as fault flags and status registers, that can be used to troubleshoot issues.
  • Infineon recommends a power supply decoupling scheme that includes a combination of ceramic and electrolytic capacitors to filter out noise and ripple on the power supply lines. The recommended decoupling scheme is described in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS2330DSPBF Overview

Use the download button to access the IRS2330DSPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23, or try a keyword search, such as MOSFET Drivers
