A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency switching nodes (e.g., drain-source voltage) as close to the IC as possible, and use a Kelvin connection for the sense resistor.
Ensure good thermal design, including a heat sink and thermal interface material. Monitor the junction temperature (TJ) and reduce the switching frequency or output power if TJ exceeds 150°C. Also, consider using a thermistor or thermocouple to monitor the temperature.
Use a common-mode choke and a differential-mode filter to reduce EMI. Ensure good shielding of the PCB, and consider using a metal can or shielded enclosure. Keep the switching nodes away from the PCB edges, and use a Faraday shield or copper pour to contain the EMI.
Use an oscilloscope to monitor the gate-source voltage, drain-source voltage, and current sense signals. Check for proper PCB layout, decoupling, and filtering. Verify the input voltage, output voltage, and current sense resistor values. Consult the datasheet and application notes for troubleshooting guides.
The internal bootstrap diode can affect the circuit's start-up behavior and voltage rating. Ensure the bootstrap capacitor is properly sized and placed close to the IC. Consider adding an external bootstrap diode or voltage regulator if the internal diode is not suitable for the application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

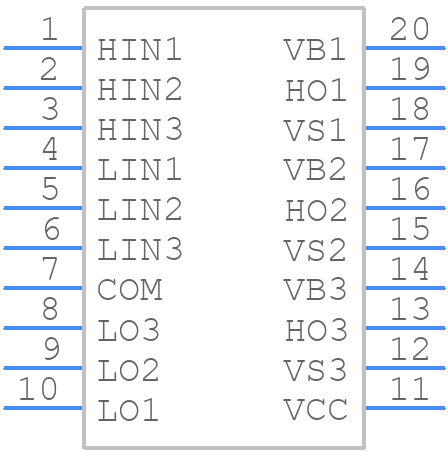

IRS2334STRPBF Overview
