Infineon provides a recommended PCB layout in the application note AN-978, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The bootstrap capacitor value depends on the specific application and the required hold-up time. A general guideline is to choose a capacitor with a value between 10nF to 100nF, and to ensure it meets the voltage rating and ripple current requirements. Consult the application note AN-978 for more information.
The maximum allowed voltage on the VCC pin is 20V, according to the datasheet. However, it's recommended to operate the device within the recommended voltage range of 12V to 15V for optimal performance and reliability.
Proper thermal management is crucial for the device's reliability and performance. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal pad if necessary. Consult the application note AN-978 for more information.
The recommended input filter configuration depends on the specific application and the required EMI performance. A general guideline is to use a pi-filter configuration with a common-mode choke and X- and Y-capacitors. Consult the application note AN-978 for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS23364DJPBF Overview

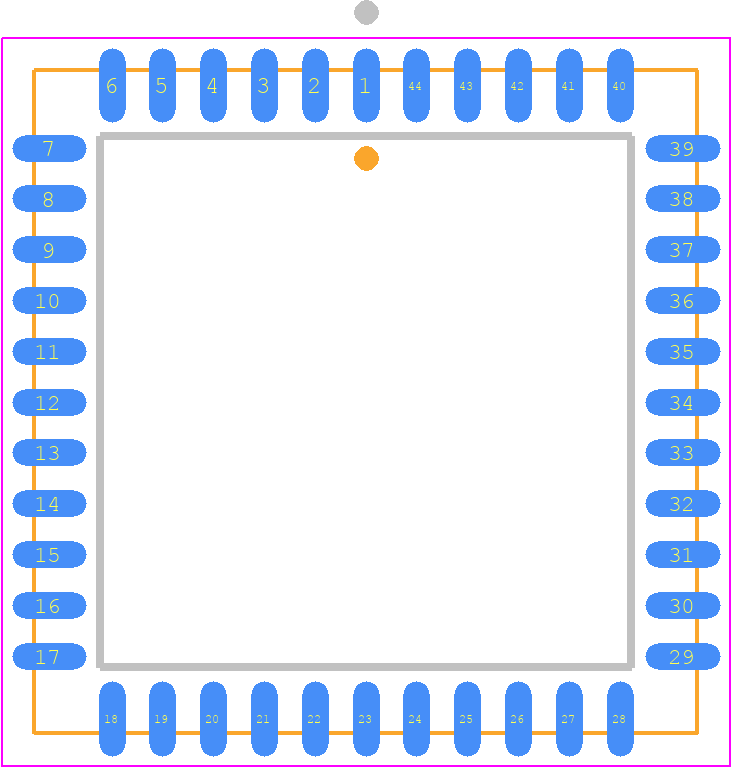

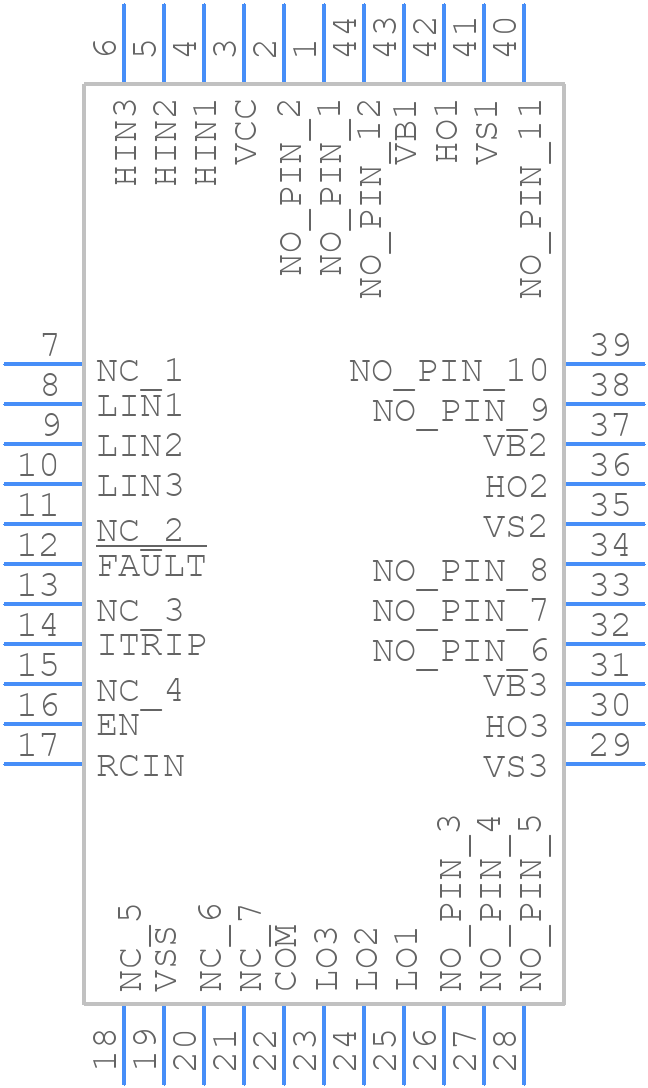

Use the download button to access the IRS23364DJPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23,
or try a keyword search, such as MOSFET Drivers
