Infineon provides a recommended PCB layout guide in their application note AN-1133, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Infineon recommends following their guidelines for thermal management, including using a heat sink, ensuring good airflow, and avoiding thermal hotspots. Additionally, the device is qualified for operation up to 150°C, but derating may be necessary for extended lifetimes.
The maximum allowed voltage on the VCC pin is 18V, and Infineon recommends using a voltage regulator or overvoltage protection circuit to prevent damage from voltage spikes or transients.
Infineon provides a troubleshooting guide in their application note AN-1134, which includes steps for debugging common issues, such as checking power supply, clock signals, and configuration settings.
Infineon provides a software development kit (SDK) and a graphical user interface (GUI) tool for programming and configuring the device. The SDK includes example code and documentation for popular microcontrollers and development environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS23364DSPBF Overview

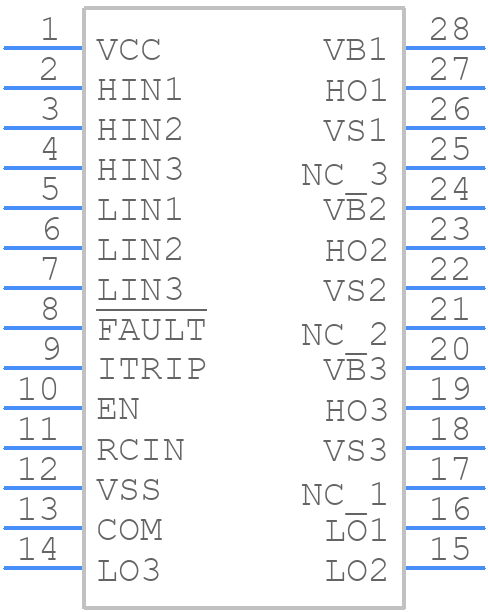

Use the download button to access the IRS23364DSPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23,
or try a keyword search, such as MOSFET Drivers
