Infineon provides a recommended PCB layout in the application note AN-978, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The bootstrap capacitor value depends on the specific application and the required bootstrap voltage. A general guideline is to choose a capacitor with a value between 10nF to 100nF, and a voltage rating that is at least 2x the maximum bootstrap voltage. Infineon also provides a bootstrap capacitor selection guide in the application note AN-978.
The maximum allowed voltage on the VCC pin is 20V, according to the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable operation and to prevent damage to the device.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Infineon also provides thermal management guidelines in the application note AN-978.
Infineon recommends using a pi-filter (C-L-C) or an LC filter at the input stage to reduce electromagnetic interference (EMI). The filter component values depend on the specific application and the required EMI reduction. Infineon provides guidelines for input filter design in the application note AN-978.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS2336DJPBF Overview

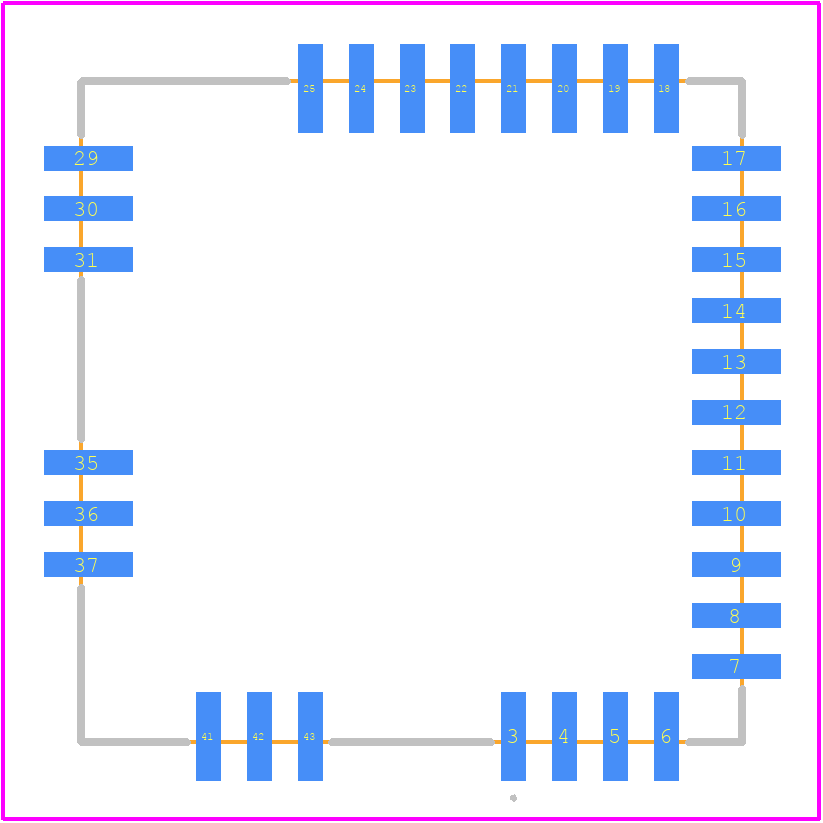

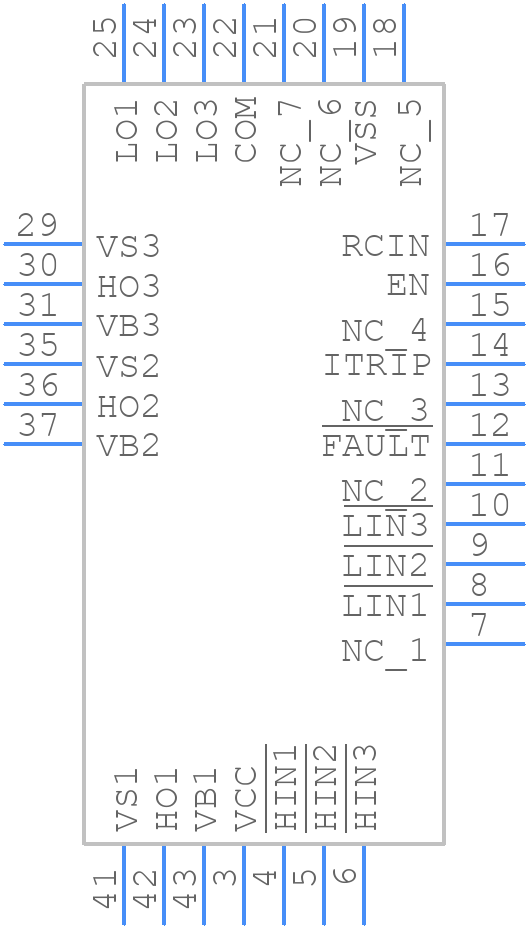

Use the download button to access the IRS2336DJPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23,
or try a keyword search, such as MOSFET Drivers
