Part Image

IRS2336JTRPBF - Infineon

Description: IC GATE DRVR HALF-BRIDGE 44PLCC

Download IRS2336JTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

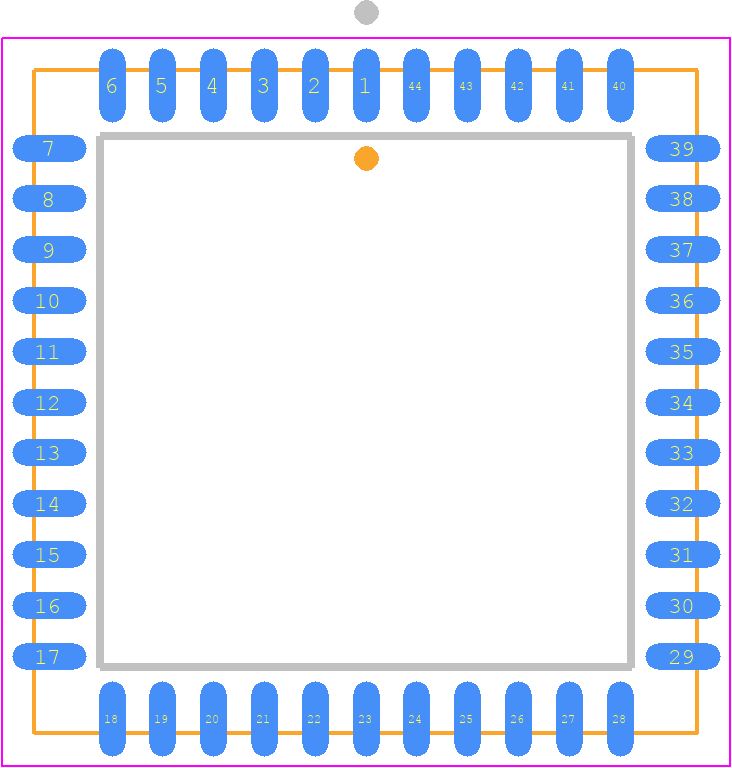

IRS2336JTRPBF - Infineon PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 44-lead plcc
click to zoom

IRS2336JTRPBF Details

  • Manufacturer Part Number:

    IRS2336JTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-44/32

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    16.585 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.35 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    0.75 µs

  • Turn-on Time:

    0.75 µs

  • Width:

    16.585 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS2336JTRPBF Overview

Use the download button to access the IRS2336JTRPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23, or try a keyword search, such as MOSFET Drivers

Parts related to IRS2336JTRPBF

Showing 0 results

IRS2336JTRPBF Alternates

Showing results

Image Part Number Model
Part Image IRS2336JPBF Infineon Technologies AG

Buffer/Inverter Based MOSFET Driver, 0.35A, CMOS, PQCC44, ROHS COMPLIANT, MS-018AC, PLASTIC, LCC-44
