Infineon provides a recommended PCB layout in the application note AN-978, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The bootstrap capacitor value depends on the specific application and the required hold-up time. A general guideline is to choose a capacitor with a value between 10nF to 100nF. However, it's recommended to consult the application note AN-978 and perform simulations to determine the optimal value for your specific design.
Although the datasheet specifies a maximum voltage of 20V on the VCC pin, it's recommended to limit the voltage to 15V to ensure reliable operation and prevent damage to the device.
To ensure reliable operation at high temperatures, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, consult the datasheet for the device's thermal characteristics and derating guidelines.
The recommended gate resistor value depends on the specific application and the required switching frequency. A general guideline is to choose a resistor value between 10Ω to 100Ω. However, it's recommended to consult the application note AN-978 and perform simulations to determine the optimal value for your specific design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS2336SPBF Overview

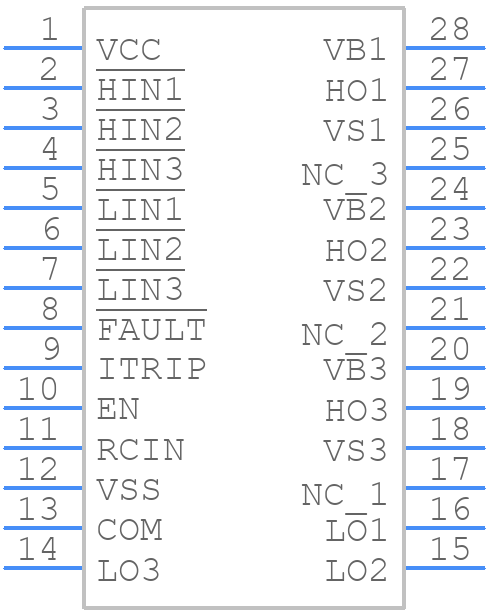

Use the download button to access the IRS2336SPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS23,
or try a keyword search, such as MOSFET Drivers
