IRS2453DPBF - Infineon

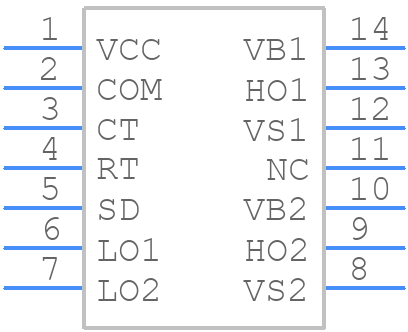

IRS2453DPBF Details

• Manufacturer Part Number:

  IRS2453DPBF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

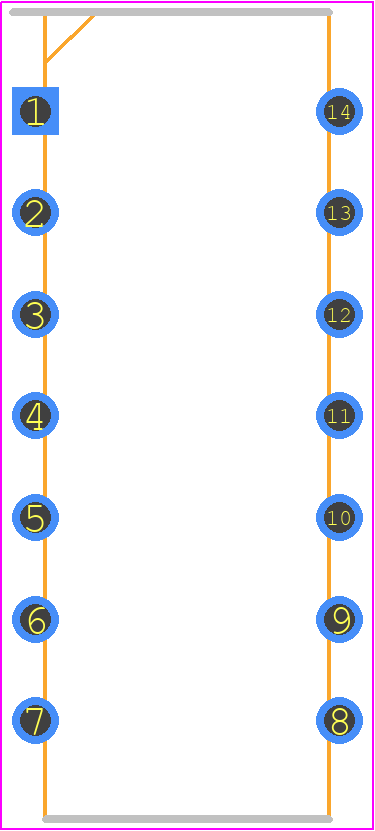

• Package Description:

  DIP-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  0

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  FULL BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDIP-T14

• Length:

  19.305 mm

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -25 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  0.26 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  5 mA

• Supply Voltage-Max:

  16.6 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  14 V

• Supply Voltage1-Max:

  600 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7.62 mm
