IRS2573DSPBF - Infineon

Description: HID BALLAST CONTROL IC

Download IRS2573DSPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

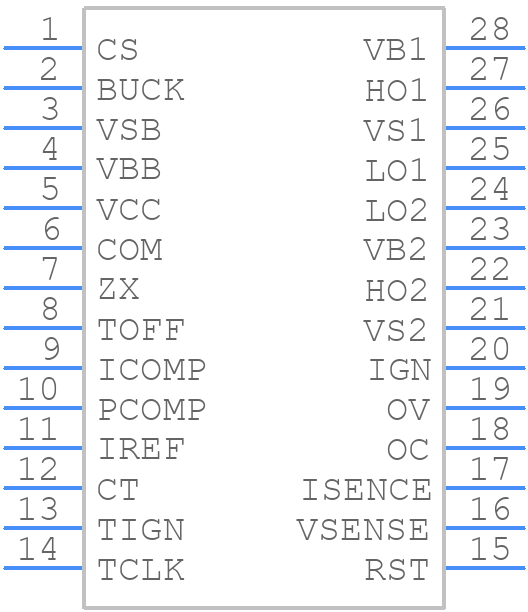

IRS2573DSPBF - Infineon - PCB symbol
click to zoom
PCB Footprints

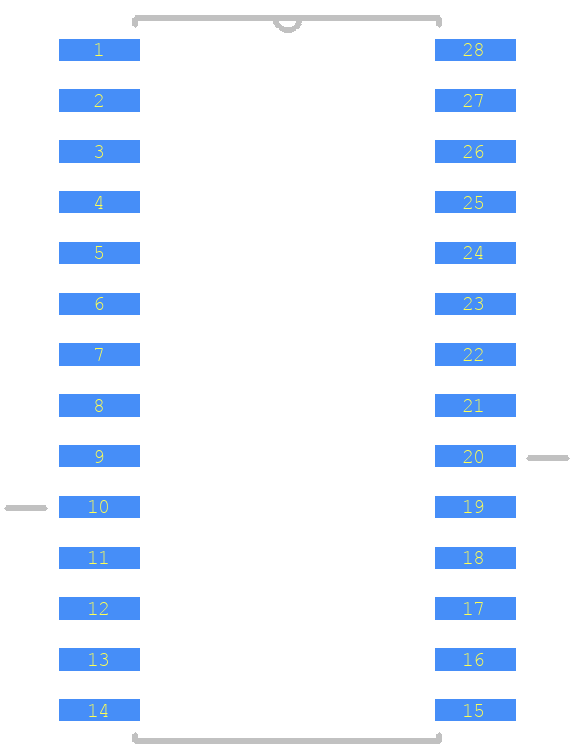

IRS2573DSPBF - Infineon PCB footprint - Other - Other - SOIC127PX1032X265-28N
click to zoom

IRS2573DSPBF Details

  • Manufacturer Part Number:

    IRS2573DSPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, MS-013AE, SOIC-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    CONSTANT POWER CONTROL

  • Input Voltage-Max:

    16.6 V

  • Input Voltage-Min:

    11.6 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    240 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

IRS2573DSPBF Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN-1145, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of external components depends on the specific application requirements and operating conditions. Infineon provides guidelines and recommendations for component selection in the datasheet and application notes. Additionally, online tools and simulation models can be used to simulate and optimize the design.
  • The maximum allowed junction temperature for the IRS2573DSPBF is 150°C. To ensure the device stays within the safe operating range, it is essential to provide adequate heat sinking, use thermal interface materials, and follow proper thermal management design practices. Infineon provides thermal design guidelines and thermal models to help with this task.
  • Troubleshooting common issues with the IRS2573DSPBF requires a systematic approach, including checking the power supply, input and output voltages, and signal waveforms. Infineon provides troubleshooting guidelines and application notes that can help identify and resolve common issues. Additionally, online forums and technical support resources can be used to seek assistance from experienced engineers and Infineon experts.
  • The IRS2573DSPBF is designed to meet EMI and EMC standards, but it is still essential to follow proper design practices and guidelines to ensure compliance. Infineon provides EMI and EMC guidelines and application notes that cover topics such as layout, filtering, and shielding. Additionally, Infineon offers EMI and EMC simulation models and tools to help with design and verification.
