Infineon provides a recommended PCB layout in their application note AN-1123, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow Infineon's guidelines for thermal management, including proper heat sink design, thermal interface material selection, and derating the device's power handling capabilities according to the ambient temperature.
Infineon recommends using a gate drive circuit with a high current capability and a low output impedance to ensure fast switching times and low power losses. A suitable gate drive circuit is described in Infineon's application note AN-978.
To protect the device from overvoltage and overcurrent conditions, it's recommended to use a suitable overvoltage protection circuit, such as a zener diode or a transient voltage suppressor, and an overcurrent protection circuit, such as a fuse or a current sense resistor.
Infineon recommends following the soldering and assembly guidelines outlined in their application note AN-1145, which includes information on soldering temperatures, times, and techniques, as well as component handling and storage guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS26302DJPBF Overview

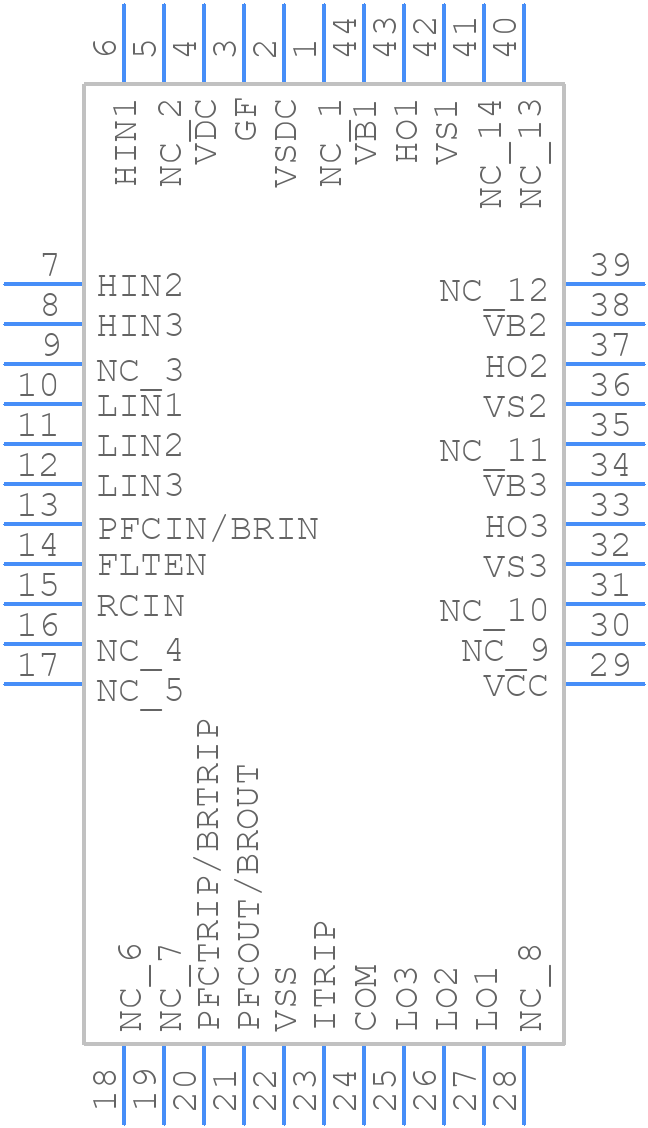

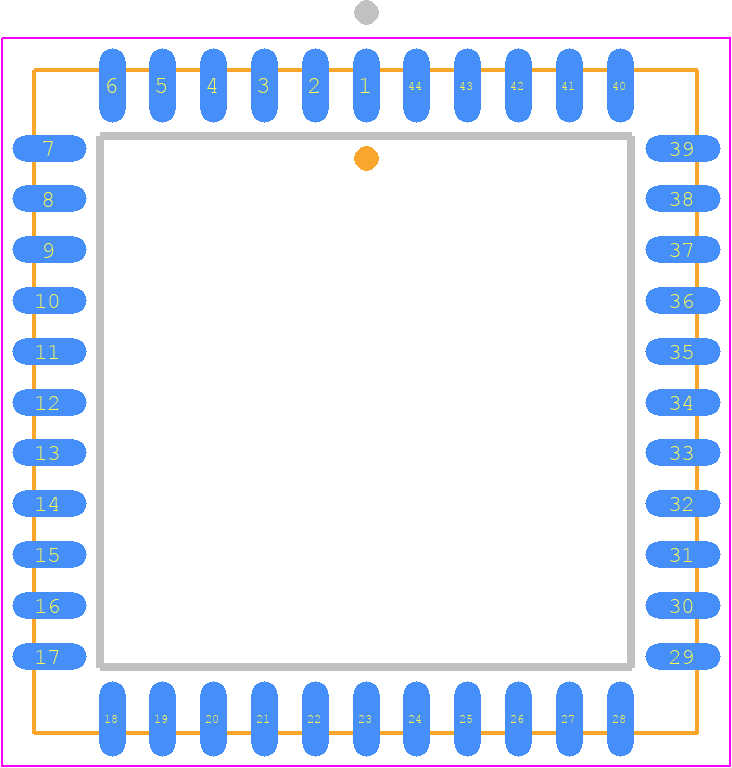

Use the download button to access the IRS26302DJPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS26,
or try a keyword search, such as MOSFET Drivers
