Infineon provides a recommended PCB layout in the application note AN-1143, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, the device should be operated within the specified junction temperature range (TJ) of -40°C to 150°C.
The maximum allowed voltage on the bootstrap capacitor is 35V, as specified in the datasheet. Exceeding this voltage can damage the device.
Infineon provides a troubleshooting guide in the application note AN-1144, which covers common issues and their solutions, such as debugging techniques, fault detection, and error handling.
The recommended gate drive voltage for optimal performance is 12V to 15V, as specified in the datasheet. This ensures proper switching of the power MOSFETs and minimizes power losses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRS2890DSPBF Overview

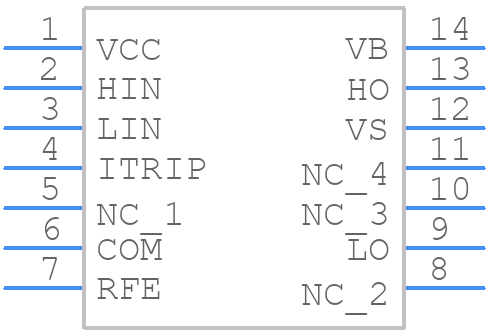

Use the download button to access the IRS2890DSPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS28,
or try a keyword search, such as MOSFET Drivers
