IRS44262SPBF - Infineon

Description: Infineon IRS44262SPBF, DC Motor Driver IC, 20 V 3.3A, SOIC 8-Pin

Download IRS44262SPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

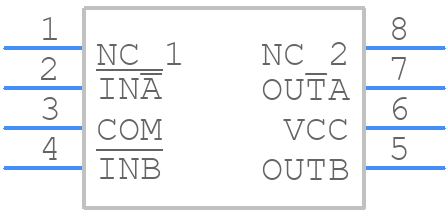

IRS44262SPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS44262SPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8 SOIC
click to zoom
3D Models
IRS44262SPBF - Infineon - 3D model - Small Outline Packages - 8 SOIC
click to zoom

IRS44262SPBF Details

  • Manufacturer Part Number:

    IRS44262SPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • Moisture Sensitivity Level:

    2

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    AUTOMOTIVE

IRS44262SPBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IRS44262SPBF is 500 kHz, but it can be operated at higher frequencies with reduced performance.
  • Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and keeping the device away from heat sources. The thermal resistance of the package is 2.5°C/W.
  • A good layout and routing practice is to keep the high-current paths short and wide, use a solid ground plane, and keep the input and output stages separated to minimize noise coupling.
  • Overvoltage protection can be achieved using a voltage clamp or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
  • The recommended input capacitance is 1-10uF, and the recommended output capacitance is 10-100uF, depending on the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRS44262SPBF Overview

Use the download button to access the IRS44262SPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRS44, or try a keyword search, such as Peripheral Drivers
