IRS44262STRPBF - Infineon

Description: Gate Drivers 25V dual low-side ,3.3A,50ns,DSO-8

Download IRS44262STRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

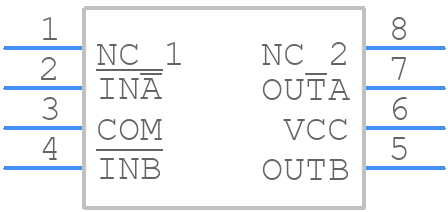

IRS44262STRPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRS44262STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8 Lead SOIC HEIGHT 1.75
click to zoom
3D Models
IRS44262STRPBF - Infineon - 3D model - Small Outline Packages - 8 Lead SOIC HEIGHT 1.75
click to zoom

IRS44262STRPBF Details

  • Manufacturer Part Number:

    IRS44262STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

IRS44262STRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRS44262STRPBF is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources.
  • A recommended PCB layout for the IRS44262STRPBF includes a solid ground plane, short and wide traces, and a decoupling capacitor close to the device.
  • Overvoltage and undervoltage protection can be achieved using voltage regulators, TVS diodes, and zener diodes.
  • The recommended gate resistor value for the IRS44262STRPBF is between 10 ohms and 100 ohms, depending on the specific application.
