IS01EBFRGB footprint, schematic symbol and 3D model by NKK Switches

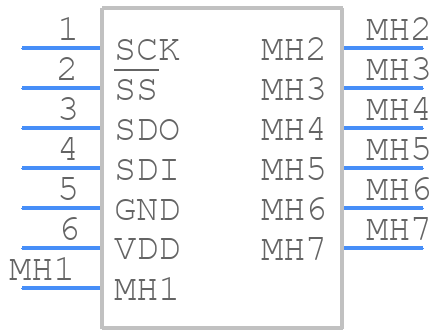

Symbol

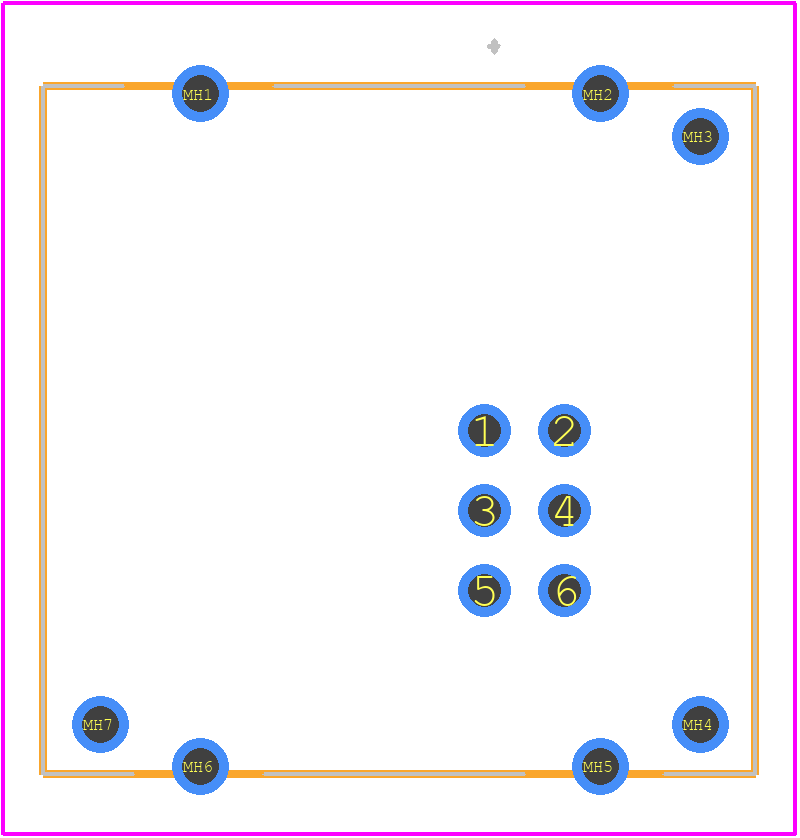

PCB Footprints

3D Models

IS01EBFRGB Details

The recommended operating temperature range for the IS01EBFRGB is -20°C to 70°C.
No, the IS01EBFRGB is not suitable for outdoor use as it is not rated for environmental sealing or moisture resistance.
The maximum current rating for the IS01EBFRGB is 50mA per contact.
No, the IS01EBFRGB is not designed for high-vibration applications and may not perform reliably in such environments.
Yes, the IS01EBFRGB is RoHS compliant and meets the requirements of the EU's Restriction of Hazardous Substances directive.

Expert Contribution

System Verified

Community Approved

Use the download button to access the IS01EBFRGB schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IS01E, or try a keyword search, such as LCD Displays
