IS15BBFP4RGB - NKK Switches

IS15BBFP4RGB Details

• Manufacturer Part Number:

  IS15BBFP4RGB

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  NKK Switches

• YTEOL:

  7.4

• Actuator Length:

  0.512 inch

• Actuator Travel:

  1.8034 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  20.5994 mm

• Body Height:

  10.0076 mm

• Body Length or Diameter:

  23.1394 mm

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@12VDC

• Contact Resistance:

  0.2 mΩ

• Contact Voltage(DC)-Max:

  12 V

• Electrical Life:

  1000000 Cycle(s)

• Illumination:

  LED

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -20 °C

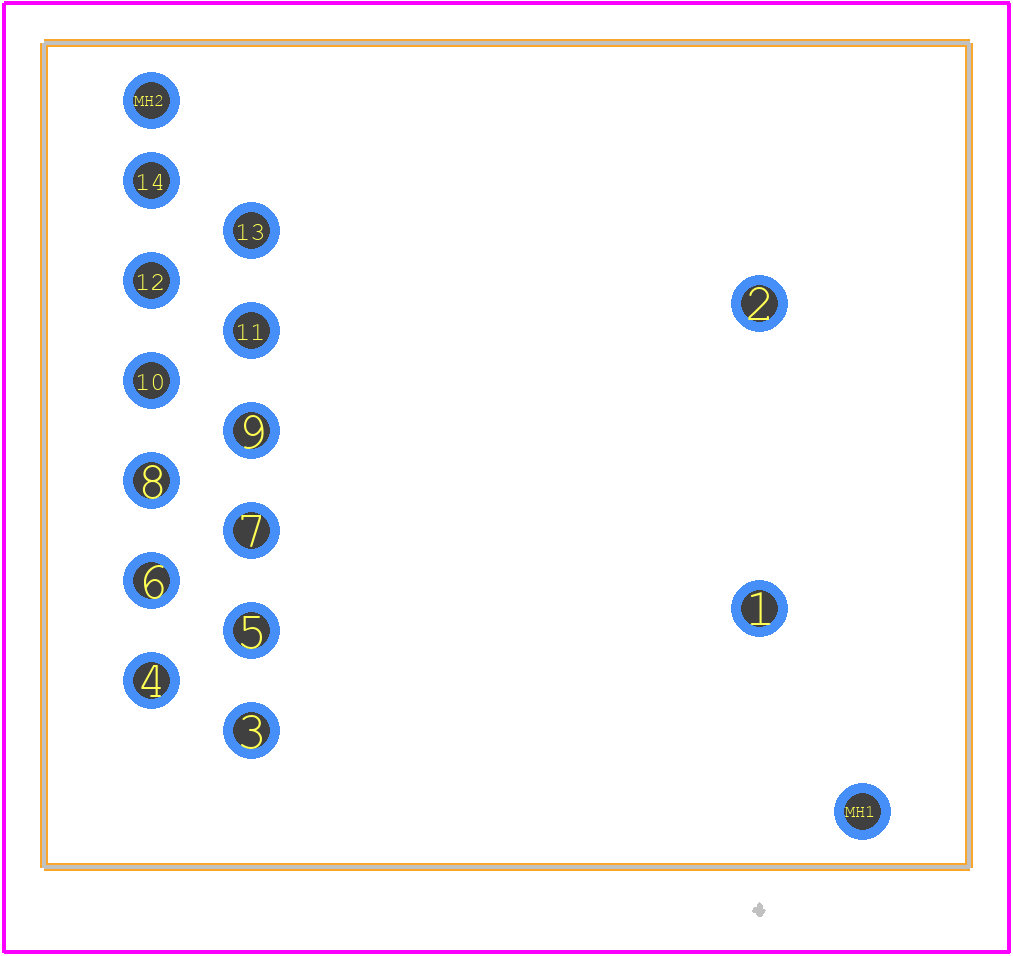

• PCB Hole Count:

  16

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Function:

  SPST

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.11 inch

• Termination Type:

  SOLDER
