IS15EBFP4RGB-09YN - NKK Switches

Description: Display Switches IS LCD 64x32 RGB SWITCH WIDE SCREEN

Download IS15EBFP4RGB-09YN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

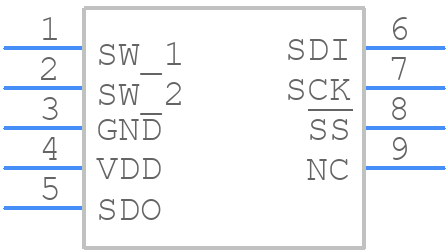

IS15EBFP4RGB-09YN - NKK Switches - PCB symbol
click to zoom
PCB Footprints

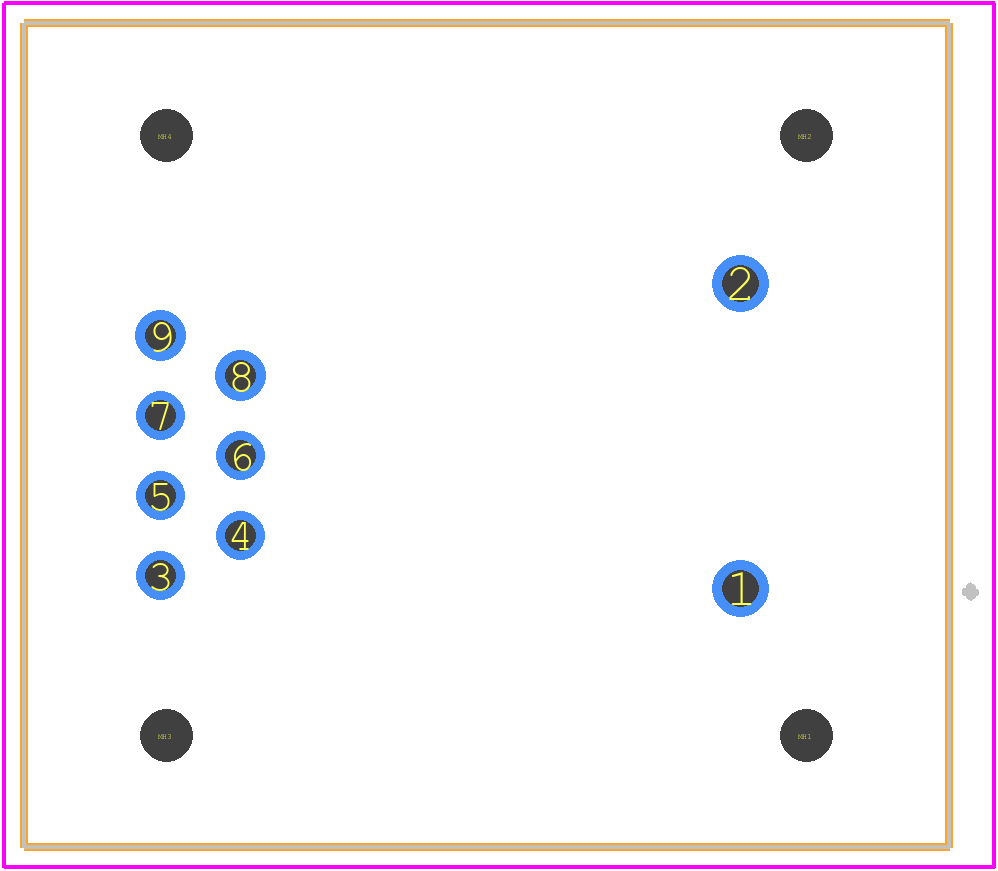

IS15EBFP4RGB-09YN - NKK Switches PCB footprint - Other - Other - IS15EBFP4RGB-09YN-5
click to zoom
3D Models
IS15EBFP4RGB-09YN - NKK Switches - 3D model - Other - IS15EBFP4RGB-09YN-5
click to zoom

IS15EBFP4RGB-09YN Details

  • Manufacturer Part Number:

    IS15EBFP4RGB-09YN

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    NKK Switches

  • Switch Type:

    PUSHBUTTON SWITCH

IS15EBFP4RGB-09YN Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the IS15EBFP4RGB-09YN is -20°C to 70°C.
  • Yes, the IS15EBFP4RGB-09YN is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments.
  • The maximum current rating for the IS15EBFP4RGB-09YN is 50mA per circuit.
  • Yes, the IS15EBFP4RGB-09YN is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The typical actuation force required to operate the IS15EBFP4RGB-09YN is 1.5N (150gf).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IS15EBFP4RGB-09YN Overview

Use the download button to access the IS15EBFP4RGB-09YN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS15E, or try a keyword search, such as Pushbutton Switches
