IS15ESBFP4RGB - NKK Switches

Description: Switch Push Button OFF (ON) SPST Rectangular LCD 0.1A 12VDC Momentary Contact PC Pins Thru-Hole

Download IS15ESBFP4RGB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

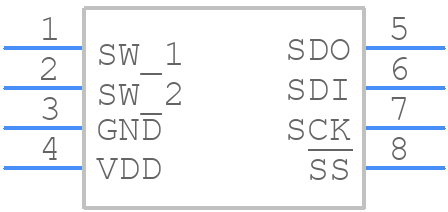

IS15ESBFP4RGB - NKK Switches - PCB symbol
click to zoom
PCB Footprints

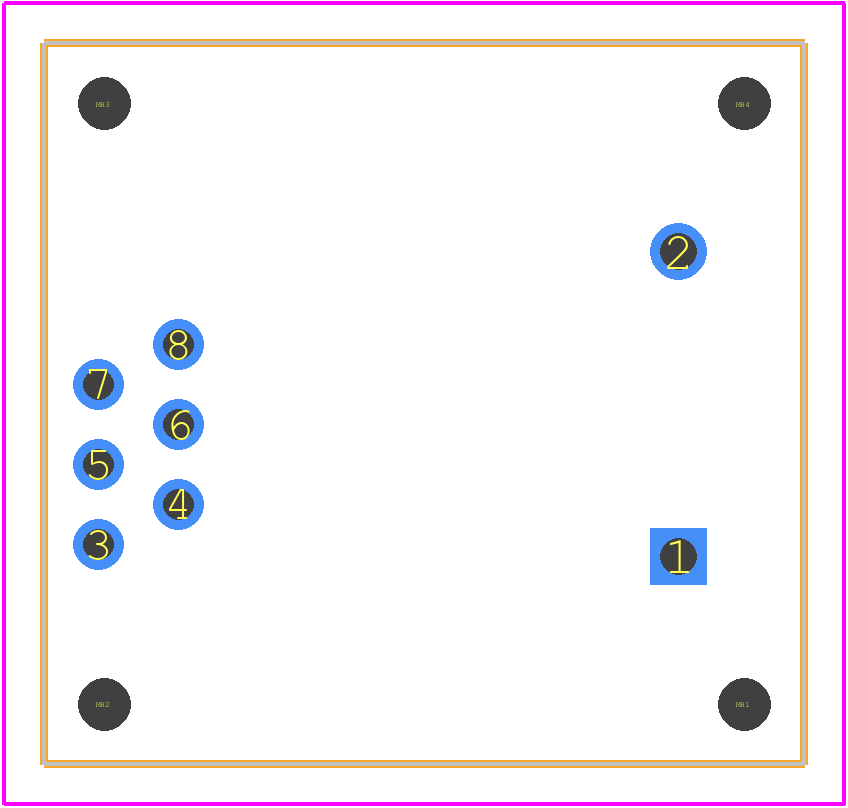

IS15ESBFP4RGB - NKK Switches PCB footprint - Other - Other - IS15ESBFP4RGB-2
click to zoom
3D Models
IS15ESBFP4RGB - NKK Switches - 3D model - Other - IS15ESBFP4RGB-2
click to zoom

IS15ESBFP4RGB Details

  • Manufacturer Part Number:

    IS15ESBFP4RGB

  • Brand Name:

    NKK Switches

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.31

  • Manufacturer:

    NKK Switches

  • Actuator Travel:

    4.4958 mm

  • Actuator Type:

    PUSHBUTTON

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@12VDC

  • Contact Function:

    OFF-(ON)

  • Contact Resistance:

    0.2 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Electrical Life:

    3000000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -15 °C

  • Sealing:

    EPOXY

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Termination Type:

    SOLDER
