IS1870SF-202 - Microchip

Description: RF System on a Chip - SoC Bluetooth BLE IC, 6x6mm, Industrial Temp

Download IS1870SF-202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

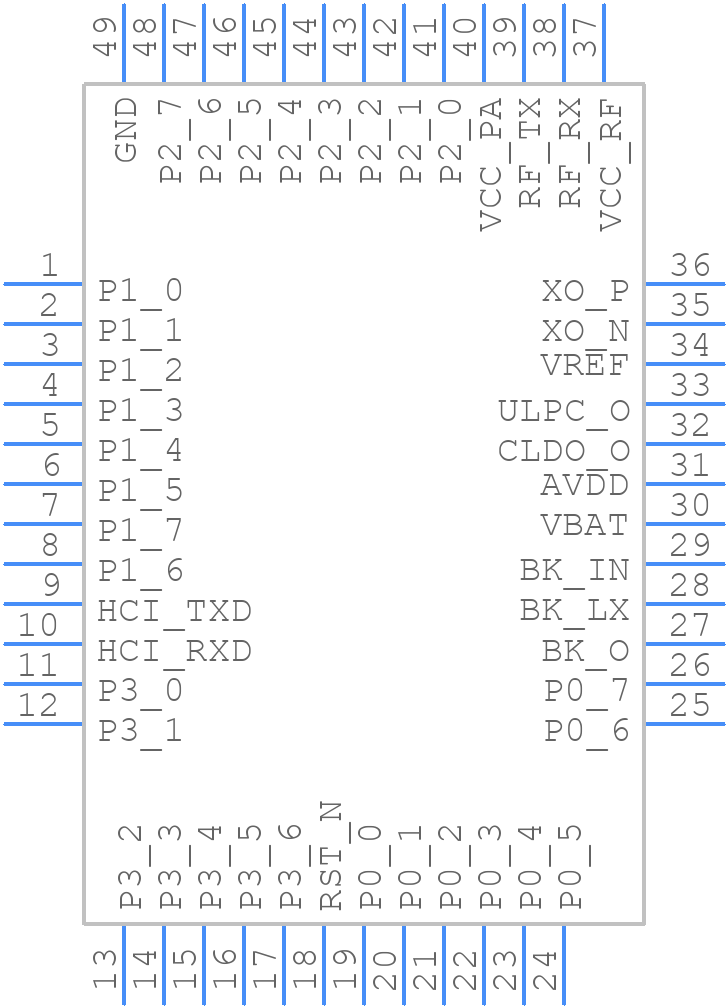

Symbol
IS1870SF-202 - Microchip - PCB symbol
click to zoom
PCB Footprints
IS1870SF-202 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48QFN, 6x6 mm SoC Outline (IS1870SF)
click to zoom
3D Models
IS1870SF-202 - Microchip - 3D model - Quad Flat No-Lead - 48QFN, 6x6 mm SoC Outline (IS1870SF)
click to zoom

IS1870SF-202 Details

  • Manufacturer Part Number:

    IS1870SF-202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8517.70.00.00

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

IS1870SF-202 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the IS1870SF-202 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management. Following these guidelines can help ensure optimal performance and minimize electromagnetic interference (EMI).
  • The IS1870SF-202 has a programmable input voltage range. You can configure it using the I2C interface to set the input voltage range to 12V, 15V, or 24V. Refer to the datasheet and application notes for specific register settings and programming examples.
  • The IS1870SF-202 can deliver up to 2A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet and thermal derating curves to ensure the device can meet your specific application requirements.
  • The IS1870SF-202 has a built-in overcurrent protection feature. You can set the overcurrent threshold using the I2C interface. When the output current exceeds the set threshold, the device will enter a fault state and shut down. You can also use external circuitry to implement additional overcurrent protection mechanisms.
  • The typical startup time for the IS1870SF-202 is around 10ms to 15ms. However, this can vary depending on the input voltage, output voltage, and external component values. You can optimize the startup time by selecting the appropriate external components and adjusting the soft-start timing.
