IS1871SF-202 - Microchip

Description: RF System on a Chip - SoC Bluetooth BLE IC, 4x4mm, Industrial Temp

Download IS1871SF-202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

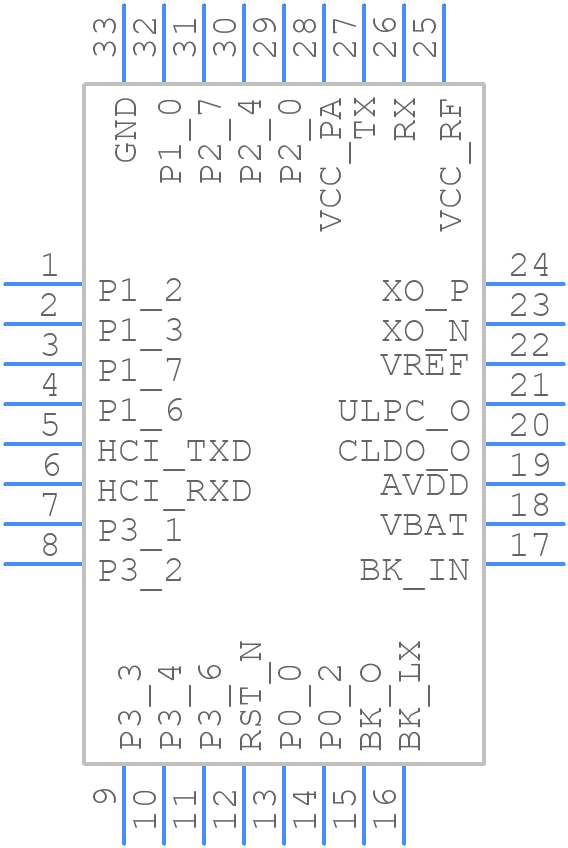

IS1871SF-202 - Microchip - PCB symbol
click to zoom
PCB Footprints
IS1871SF-202 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32QFN, 4X4 MM
click to zoom
3D Models
IS1871SF-202 - Microchip - 3D model - Quad Flat No-Lead - 32QFN, 4X4 MM
click to zoom

IS1871SF-202 Details

  • Manufacturer Part Number:

    IS1871SF-202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.9 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

IS1871SF-202 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and routing. Also, use a common clock source and ensure the microcontroller's clock frequency is within the IS1871SF-202's specified range.
  • The IS1871SF-202 is rated for operation from -40°C to +125°C. However, it's essential to consider the specific application's thermal requirements and ensure proper thermal management to prevent overheating.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure the PCB layout is designed to reduce radiation and susceptibility. Follow the recommended layout and component placement guidelines to minimize EMC issues.
  • The IS1871SF-202 requires a specific power-up sequence to ensure proper operation. Power up the analog supply (VDDA) first, followed by the digital supply (VDDD), and then the clock signal. Power down in the reverse order.
