IS22EF08GP-JCLA2 - Integrated Silicon Solution Inc.

Description: eMMC 8GB, 153 Ball FBGA, 3.3V, RoHS, Auto Grade(-40C+105C), Programmed

Download IS22EF08GP-JCLA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

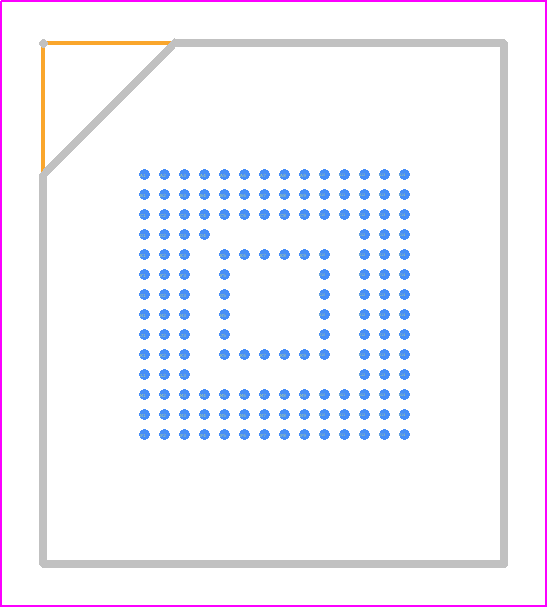

IS22EF08GP-JCLA2 - Integrated Silicon Solution Inc. PCB footprint - BGA - BGA - 153-BALL FBGA Package (C)
click to zoom
3D Models
IS22EF08GP-JCLA2 - Integrated Silicon Solution Inc.  - 3D model - BGA - 153-BALL FBGA Package (C)
click to zoom

IS22EF08GP-JCLA2 Details

  • Manufacturer Part Number:

    IS22EF08GP-JCLA2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-153

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Integrated Silicon Solution Inc

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B153

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Memory Density:

    68719476736 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    8589934592 words

  • Number of Words Code:

    8000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3.3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    EMMC 5.1

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.075 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Type:

    MLC NAND TYPE

  • Width:

    11.5 mm

  • Write Protection:

    SOFTWARE
