IS25LP032D-JLLE - Integrated Silicon Solution Inc.

Description: NOR Flash 32M QSPI, WSON ET

Download IS25LP032D-JLLE Model
Schematic

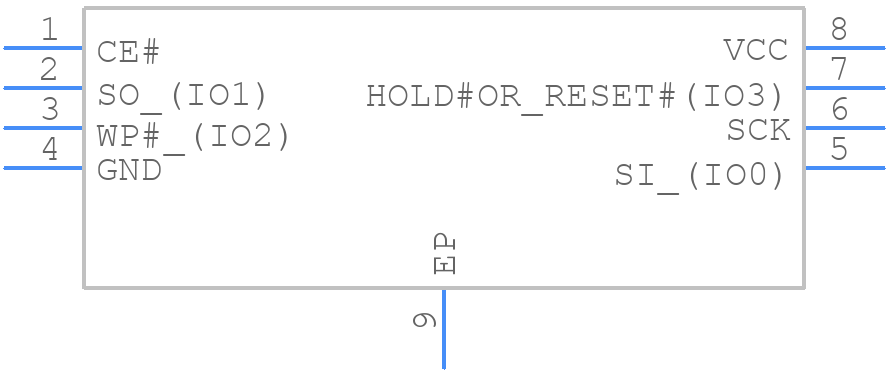

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IS25LP032D-JLLE - Integrated Silicon Solution Inc. PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON
click to zoom
3D Models
IS25LP032D-JLLE - Integrated Silicon Solution Inc.  - 3D model - Small Outline No-lead - WSON
click to zoom

IS25LP032D-JLLE Details

  • Manufacturer Part Number:

    IS25LP032D-JLLE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Integrated Silicon Solution Inc

  • YTEOL:

    5.5

  • Alternate Memory Width:

    1

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

IS25LP032D-JLLE Frequently Asked Questions (FAQs)

  • The IS25LP032D-JLLE supports up to 100,000 erase cycles.
  • The IS25LP032D-JLLE uses a page write buffer to handle page write operations. The buffer is 256 bytes, and the device can perform a maximum of 256 bytes of page write operations in a single cycle.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and all write operations are inhibited.
  • The IS25LP032D-JLLE has a built-in power-on reset circuit that ensures the device is in a known state after power-up. The device will automatically reset to its default state after power-on.
  • The recommended operating voltage range for the IS25LP032D-JLLE is 2.7V to 3.6V.
