Part Image

IS25LP064-JBLE - Integrated Silicon Solution Inc.

Description: NOR Flash 64M SPI, 8-pin SOP 208mil ET 2.3-3.6V

Download IS25LP064-JBLE Model

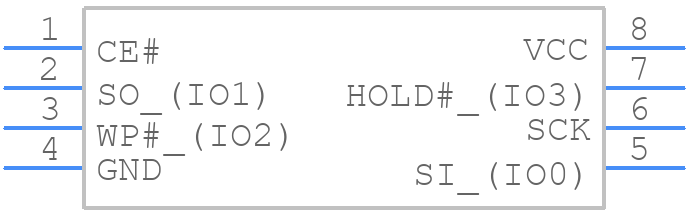

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IS25LP064-JBLE - Integrated Silicon Solution Inc. PCB footprint - Small Outline Packages - Small Outline Packages - sop
click to zoom
3D Models
IS25LP064-JBLE - Integrated Silicon Solution Inc.  - 3D model - Small Outline Packages - sop
click to zoom

IS25LP064-JBLE Details

  • Manufacturer Part Number:

    IS25LP064-JBLE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Integrated Silicon Solution Inc

  • YTEOL:

    5.6

  • Boot Block:

    BOTTOM/TOP

  • Clock Frequency-Max (fCLK):

    133 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.16 mm

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.28 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IS25LP064-JBLE Overview

Use the download button to access the IS25LP064-JBLE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS25L, or try a keyword search, such as Flash Memories

Parts related to IS25LP064-JBLE

Showing 0 results

IS25LP064-JBLE Alternates

Showing results

Image Part Number Model
Part Image IS25LP064-JFLA3 Integrated Silicon Solution Inc

Flash, 64MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, VSOP-8

Part Image IS25LP064-JFLV Integrated Silicon Solution Inc

Flash, 64MX1, PDSO8, 0.208 INCH, VSOP-8

Part Image IS25LP064-JBLA3 Integrated Silicon Solution Inc

Flash, 64MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOIC-8

Part Image IS25LP064A-JBLE1 Integrated Silicon Solution Inc

Flash, 64MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, SOIC-8

Part Image IS25LP064A-JFLA2 Integrated Silicon Solution Inc

Flash, 64MX1, PDSO8, 0.208 INCH, ROHS COMPLIANT, VSOP-8

For a full list of alternate parts for IS25LP064-JBLE, check out Findchips.com
