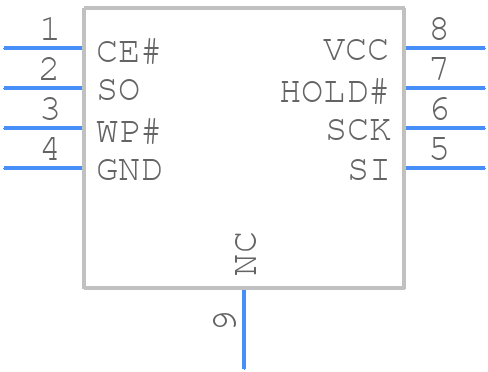

IS25LP128-JKLE - Integrated Silicon Solution Inc.

IS25LP128-JKLE Details

• Manufacturer Part Number:

  IS25LP128-JKLE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WSON-8

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Integrated Silicon Solution Inc

• YTEOL:

  5.75

• Alternate Memory Width:

  1

• Clock Frequency-Max (fCLK):

  133 MHz

• Command User Interface:

  NO

• Data Polling:

  NO

• Data Retention Time-Min:

  20

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  6 mm

• Memory Density:

  134217728 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  16MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.2

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Programming Voltage:

  2.7 V

• Seated Height-Max:

  0.8 mm

• Serial Bus Type:

  4-WIRE

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  5 mm

• Write Protection:

  HARDWARE/SOFTWARE
