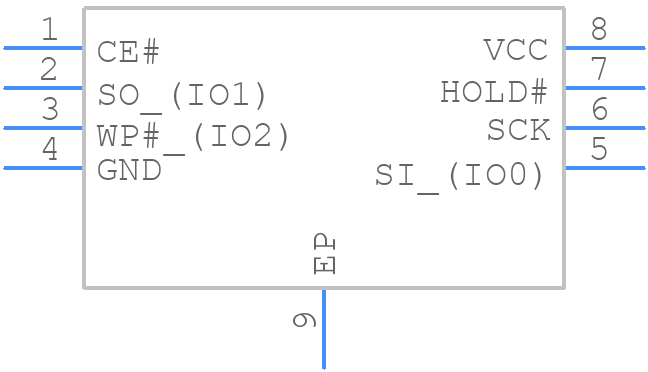

IS25LP256E-JLLE - Integrated Silicon Solution Inc.

IS25LP256E-JLLE Details

• Manufacturer Part Number:

  IS25LP256E-JLLE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WSON-8

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Integrated Silicon Solution Inc

• YTEOL:

  6.2

• Alternate Memory Width:

  1

• Clock Frequency-Max (fCLK):

  166 MHz

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-N8

• Length:

  8 mm

• Memory Density:

  268435456 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  8

• Number of Words:

  33554432 words

• Number of Words Code:

  32000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programming Voltage:

  3 V

• Seated Height-Max:

  0.8 mm

• Serial Bus Type:

  QSPI

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  6 mm
