The recommended PCB layout for optimal thermal performance involves placing thermal vias under the LED driver IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure the LED driver is properly shielded from EMI, use a metal shield can or a shielded enclosure, and keep the LED driver IC away from high-frequency components. Also, use a common-mode choke or a ferrite bead to filter the input power lines.
The maximum ambient temperature for reliable operation of the IS31BL3508A-STLS2-TR is 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper thermal management to prevent overheating.
The IS31BL3508A-STLS2-TR is designed for a specific LED configuration. However, it can be used with a different LED configuration by adjusting the external components, such as the resistors and capacitors, according to the new LED requirements. Consult the datasheet and application notes for guidance.
To troubleshoot issues with the LED driver not turning on, check the input power supply, ensure the enable pin is properly biased, and verify the LED connection and configuration. Also, check for any short circuits or open circuits on the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS31BL3508A-STLS2-TR Overview

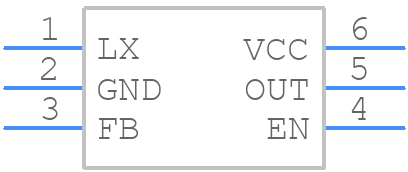

Use the download button to access the IS31BL3508A-STLS2-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31B,
or try a keyword search, such as Display Drivers
