IS31FL3193-DLS2-TR - Lumissil Microsystems

Description: IC LED DRIVER LINEAR 42MA 10DFN

Download IS31FL3193-DLS2-TR Model

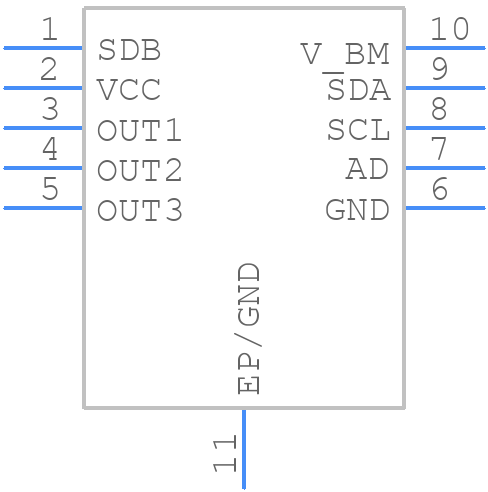

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IS31FL3193-DLS2-TR - Lumissil Microsystems PCB footprint - Small Outline No-lead - Small Outline No-lead - IS31FL3193-DLS2-TR
click to zoom
3D Models
IS31FL3193-DLS2-TR - Lumissil Microsystems  - 3D model - Small Outline No-lead - IS31FL3193-DLS2-TR
click to zoom

IS31FL3193-DLS2-TR Details

  • Manufacturer Part Number:

    IS31FL3193-DLS2-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Lumissil Microsystems

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.4 MHz

IS31FL3193-DLS2-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable communication, make sure to use the correct communication protocol (SPI or I2C), set the correct clock frequency, and use a pull-up resistor on the SDA line. Also, ensure that the microcontroller and the IS31FL3193 are properly decoupled and have a common ground.
  • The maximum current that can be drawn from the IS31FL3193's output pins is 20mA per pin. Exceeding this limit may cause damage to the device.
  • The POR and BOR features are enabled by default. To handle them, ensure that the power supply is stable and within the recommended voltage range. Also, add a capacitor to the VCC pin to filter out noise and ensure a clean power-on reset.
  • The recommended storage temperature range for the IS31FL3193 is -40°C to 125°C. Storing the device outside this range may affect its reliability and performance.
