IS31FL3731-SALS2 - Lumissil Microsystems

Description: LED DRVR 144Segment 3.3V/5V 28-Pin QFN EP Tube

Download IS31FL3731-SALS2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

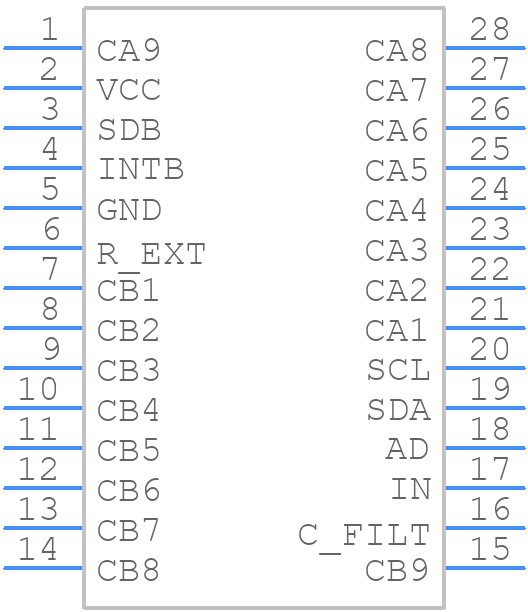

IS31FL3731-SALS2 - Lumissil Microsystems - PCB symbol
click to zoom
PCB Footprints
IS31FL3731-SALS2 - Lumissil Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - SSOP_28
click to zoom
3D Models
IS31FL3731-SALS2 - Lumissil Microsystems - 3D model - Small Outline Packages - SSOP_28
click to zoom

IS31FL3731-SALS2 Details

  • Manufacturer Part Number:

    IS31FL3731-SALS2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Lumissil Microsystems

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Display Mode:

    DOT MATRIX

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    144

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

  • fmax-Min:

    0.4 MHz

IS31FL3731-SALS2 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the IS31FL3731-SALS2 is to keep the LED pins as short as possible and away from the digital signal lines to minimize EMI. A solid ground plane and a separate power plane for the LED driver are also recommended.
  • The IS31FL3731-SALS2 requires a 3.3V or 5V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a stable voltage supply. Additionally, decoupling capacitors should be placed close to the power pins to filter out noise.
  • The maximum current rating for each LED channel is 30mA, but it's recommended to limit the current to 20mA or less to ensure reliable operation and to prevent overheating.
  • The IS31FL3731-SALS2 can be programmed using a serial interface (SPI or I2C) and a microcontroller. The device requires a specific sequence of commands to configure the LED driver, and the datasheet provides a detailed programming guide.
  • The typical response time for the IS31FL3731-SALS2 is around 10us, which means it can update the LED brightness and pattern at a rate of up to 100kHz.
