IS31FL3733-TQLS4 footprint, schematic symbol and 3D model by Lumissil Microsystems

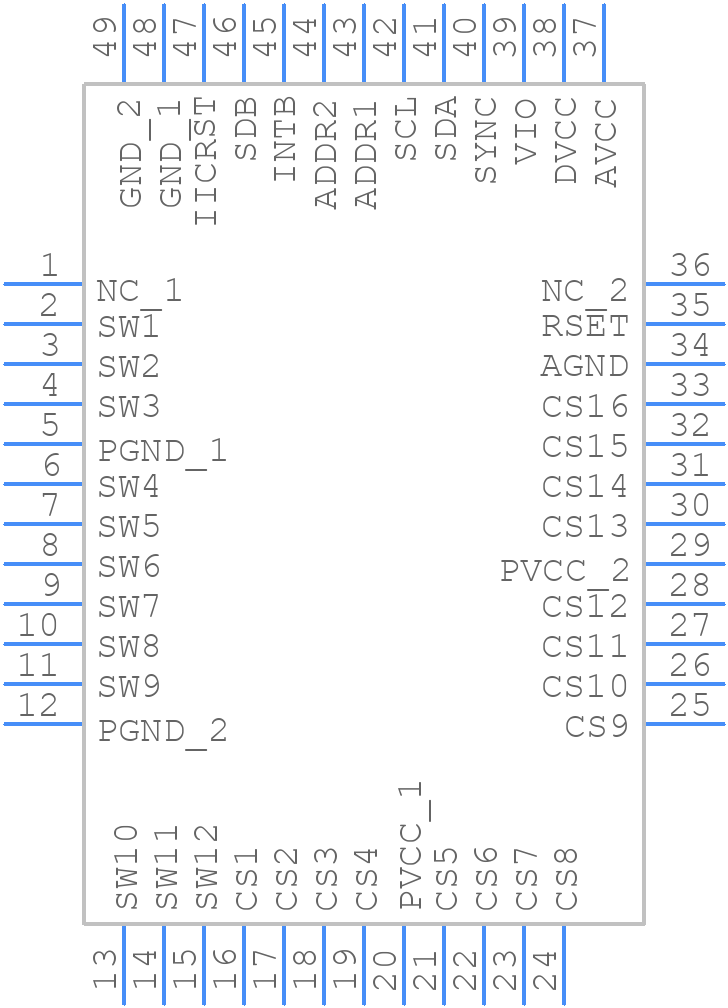

Symbol

PCB Footprints

3D Models

IS31FL3733-TQLS4 Details

The recommended PCB layout for the IS31FL3733-TQLS4 can be found in the application note AN-101, which provides guidelines for PCB design, component placement, and thermal management to ensure optimal performance and reliability.
The IS31FL3733-TQLS4 can be programmed using the I2C interface. Lumissil Microsystems provides a programming guide and software development kit (SDK) that includes APIs and example code for popular microcontrollers.
The maximum current rating for the IS31FL3733-TQLS4 is 30mA per channel, with a total current limit of 120mA for all channels combined. However, it's recommended to derate the current to ensure reliable operation and to prevent overheating.
No, the IS31FL3733-TQLS4 is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance. A voltage regulator or level shifter may be required to interface with 5V systems.
Lumissil Microsystems provides a troubleshooting guide that covers common issues and their solutions. Additionally, engineers can use oscilloscopes and logic analyzers to debug the I2C interface and verify the device's operation.

Community Provided

System Verified

Community Approved

Use the download button to access the IS31FL3733-TQLS4 schematic symbol, PCB footprint, and 3D model.
