The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-humidity environments, it is recommended to apply a conformal coating to the PCB, use moisture-resistant components, and follow proper storage and handling procedures to prevent moisture absorption.
The maximum allowable voltage on the EN pin is 6V, exceeding which may cause damage to the IC. It is recommended to use a voltage limiter or a voltage regulator to ensure the EN pin voltage remains within the specified range.
Yes, the IS31LT3953-GRLS4-TR can be used in a dimmable LED driver application. However, it is essential to ensure that the dimming frequency is within the recommended range (100Hz to 1kHz) and that the IC is properly configured to handle the dimming signal.
To troubleshoot issues with the IC's internal oscillator, check the XTAL pin connections, ensure the crystal oscillator is properly connected, and verify that the oscillator frequency is within the specified range. Also, check for any noise or interference on the XTAL pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS31LT3953-GRLS4-TR Overview

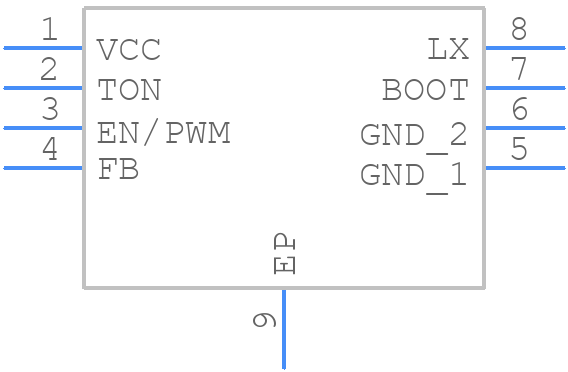

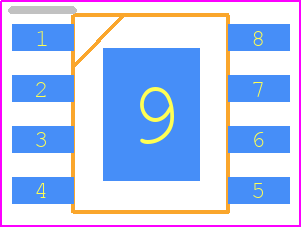

Use the download button to access the IS31LT3953-GRLS4-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS31L,
or try a keyword search, such as Display Drivers
