The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature below the maximum rating.
The IS32FL3237-TQLA3-TR has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded.
The IS32FL3237-TQLA3-TR is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must use it in such an environment, consider using a conformal coating or potting compound to protect the device from moisture.
The recommended soldering profile for the IS32FL3237-TQLA3-TR involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Ensure that the soldering process is done in a nitrogen atmosphere to prevent oxidation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IS32FL3237-TQLA3-TR Overview

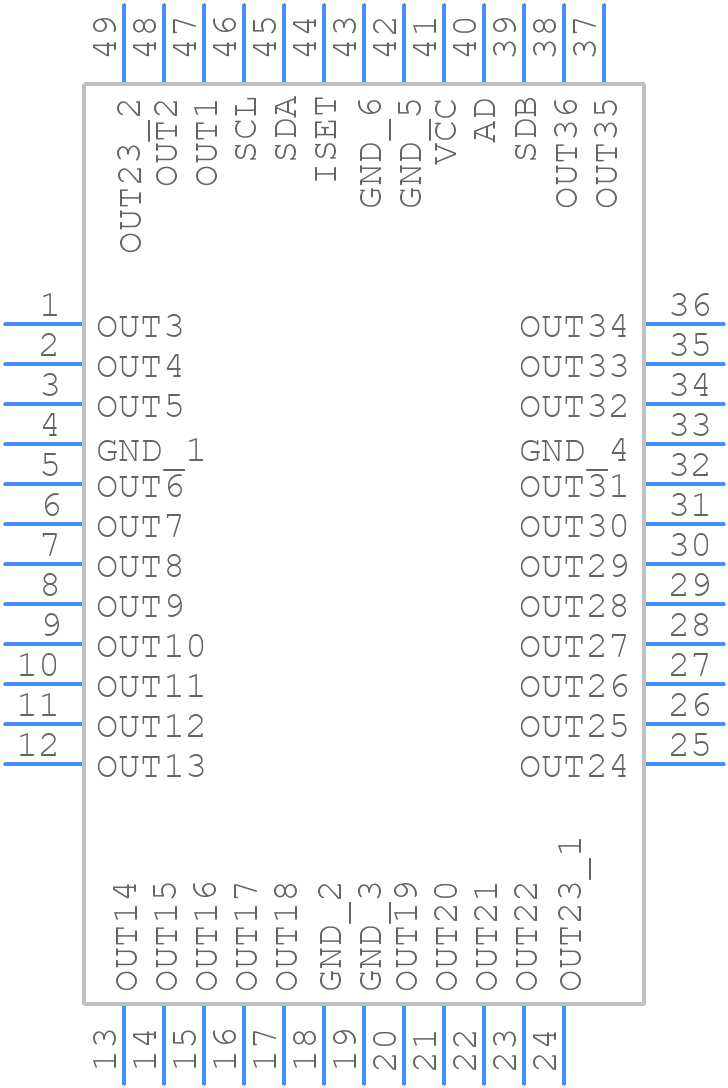

Use the download button to access the IS32FL3237-TQLA3-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IS32F,
or try a keyword search, such as Display Drivers
Suggested Parts
If you searched for IS32FL3237-TQLA3-TR, you might also be interested in these parts:
