IS62WV102416EBLL-45BLI - Integrated Silicon Solution Inc.

IS62WV102416EBLL-45BLI Details

• Manufacturer Part Number:

  IS62WV102416EBLL-45BLI

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

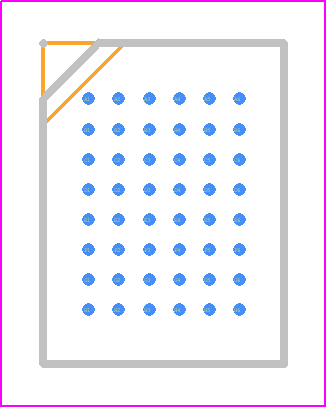

• Package Description:

  BGA-48

• Country Of Origin:

  Mainland China, Taiwan

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Integrated Silicon Solution Inc

• YTEOL:

  4

• Access Time-Max:

  45 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PBGA-B48

• Length:

  8 mm

• Memory Density:

  16777216 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  48

• Number of Words:

  1048576 words

• Number of Words Code:

  1000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1MX16

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA48,6X8,30

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Packing Method:

  TRAY

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Standby Current-Max:

  0.000065 A

• Standby Voltage-Min:

  2 V

• Supply Current-Max:

  0.012 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.2 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.75 mm

• Terminal Position:

  BOTTOM

• Width:

  6 mm
