IS80C286-20 - Renesas Electronics

IS80C286-20 Details

• Manufacturer Part Number:

  IS80C286-20

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

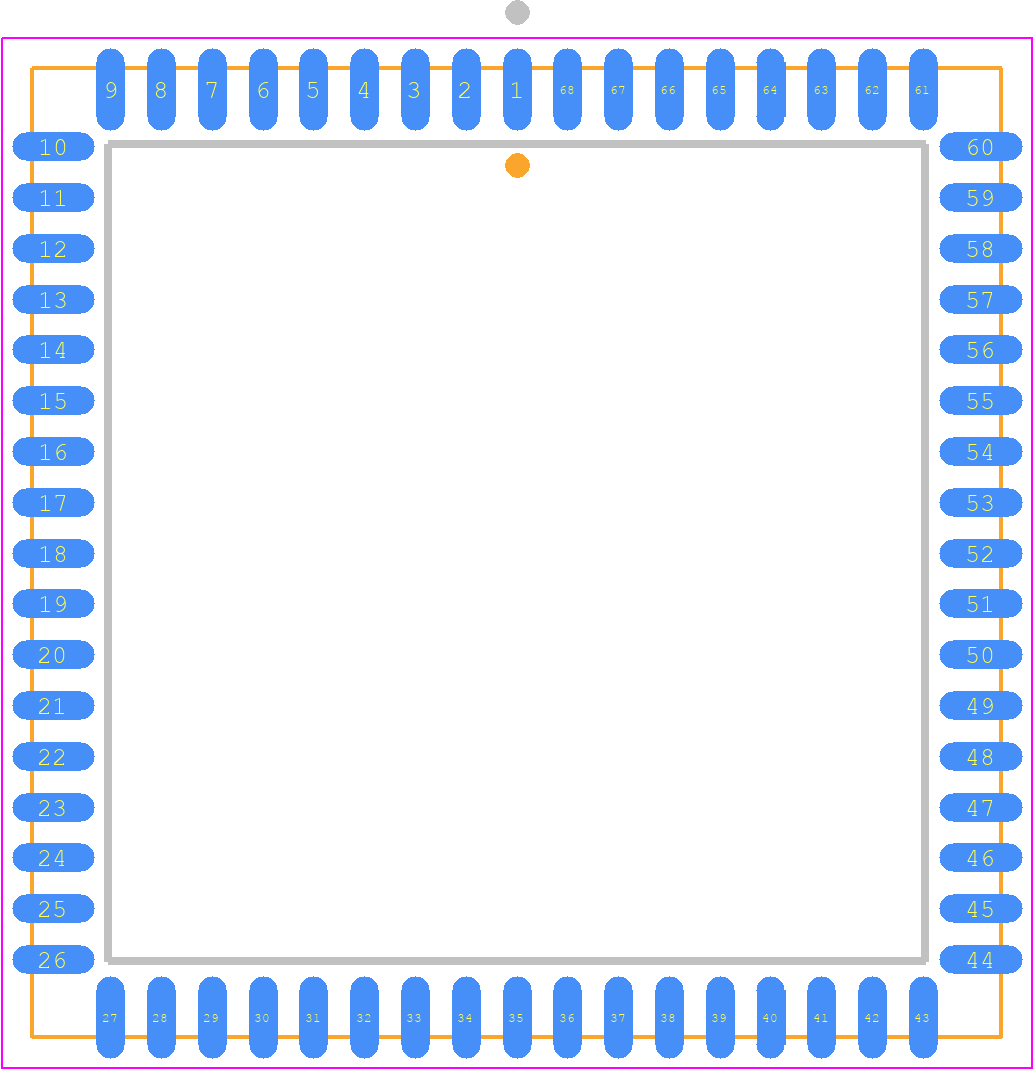

• Part Package Code:

  PLCC

• Package Description:

  LCC-68

• Pin Count:

  68

• Manufacturer Package Code:

  N68.95

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Address Bus Width:

  24

• Boundary Scan:

  NO

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-J68

• Length:

  24.23 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  4

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Seated Height-Max:

  4.57 mm

• Speed:

  20 MHz

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  24.23 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
