ISA2409 - XP POWER

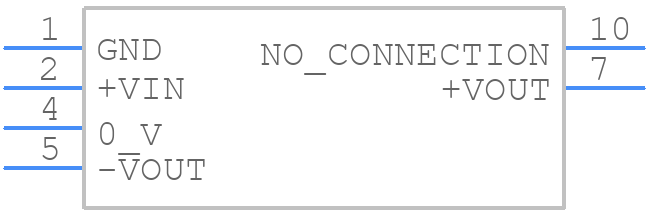

ISA2409 Details

• Manufacturer Part Number:

  ISA2409

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SMD-10/6

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  0

• Additional Feature:

  -9V ADDITIONAL OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, UKCA

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  26.4 V

• Input Voltage-Min:

  21.6 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-G6

• Length:

  15.24 mm

• Line Regulation-Max:

  1.2%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.056 A

• Output Voltage-Max:

  9.27 V

• Output Voltage-Min:

  8.73 V

• Output Voltage-Nom:

  9 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6/10LEAD,.44

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  245

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.021 Vrms

• Seated Height-Max:

  7.75 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.002 s

• Width:

  8.3 mm
