iSA48015A050V-001-R - TDK Lambda

Description: DC-DC Converters, Power module type, Output: 75W, 5V, Isolated type

Download iSA48015A050V-001-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

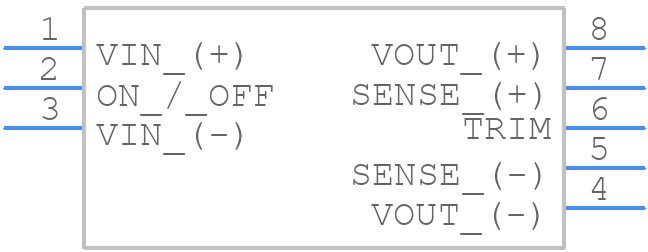

Symbol
iSA48015A050V-001-R - TDK Lambda - PCB symbol
click to zoom

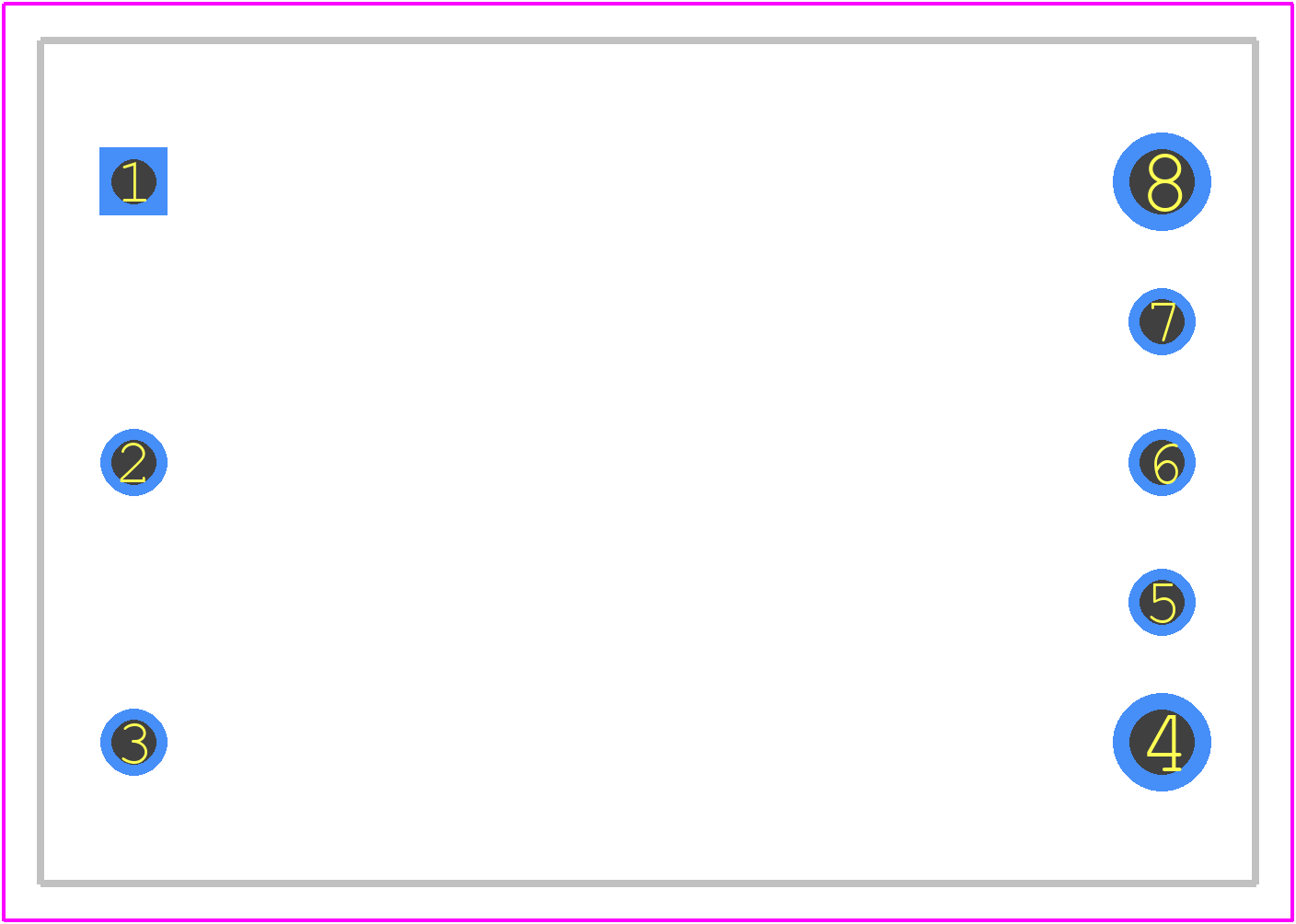

PCB Footprints
iSA48015A050V-001-R - TDK Lambda PCB footprint - Other - Other - iSA48007A120V-007-R
click to zoom
3D Models
iSA48015A050V-001-R - TDK Lambda - 3D model - Other - iSA48007A120V-007-R
click to zoom

iSA48015A050V-001-R Details

  • Manufacturer Part Number:

    ISA48015A050V-001-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, UL, VDE

  • Efficiency (Main Output):

    90%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • Length:

    33 mm

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Output Voltage-Nom:

    5 V

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Total Power Output-Max:

    75 W

  • Width:

    22.9 mm

iSA48015A050V-001-R Frequently Asked Questions (FAQs)

  • The ISA48015A050V-001-R can operate from -40°C to +85°C, with derating above 70°C.
  • Yes, the ISA48015A050V-001-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications.
  • The ISA48015A050V-001-R has a built-in heat sink, but it's recommended to provide additional airflow or a heat sink with a thermal resistance of 2°C/W or less to ensure reliable operation.
  • The ISA48015A050V-001-R has a calculated MTBF of 1.4 million hours at 40°C, making it a highly reliable power supply solution.
  • Yes, the ISA48015A050V-001-R is designed to meet the requirements of IEC 62368-1 and UL 62368-1, making it suitable for use in safety-critical applications such as medical devices and industrial control systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iSA48015A050V-001-R Overview

Use the download button to access the iSA48015A050V-001-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iSA48, or try a keyword search, such as Power Supply Modules
