iSA48025A033V-001-R - TDK Lambda

Description: DC-DC Converters, Power module type, Output: 82.5W, 3.3V, Isolated type

Download iSA48025A033V-001-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

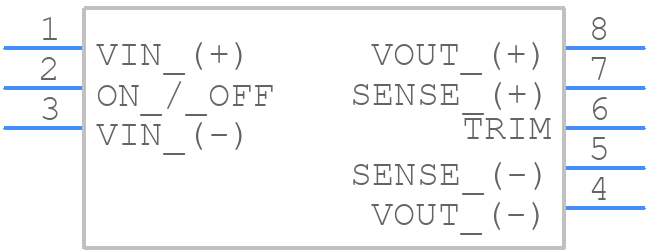

Symbol
iSA48025A033V-001-R - TDK Lambda - PCB symbol
click to zoom

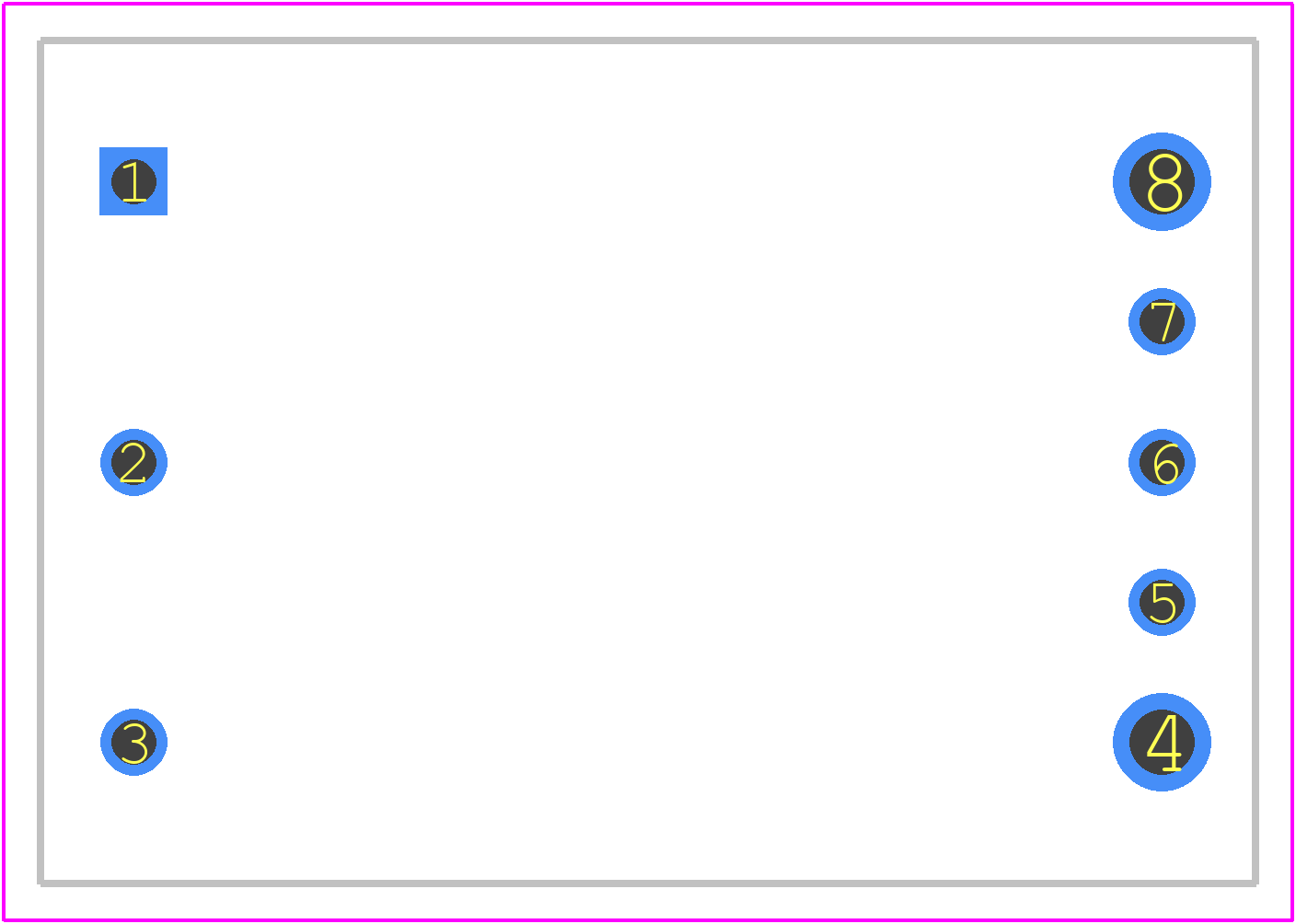

PCB Footprints
iSA48025A033V-001-R - TDK Lambda PCB footprint - Other - Other - iSA48007A120V-007-R
click to zoom
3D Models
iSA48025A033V-001-R - TDK Lambda - 3D model - Other - iSA48007A120V-007-R
click to zoom

iSA48025A033V-001-R Details

  • Manufacturer Part Number:

    ISA48025A033V-001-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CB, CE, UL, VDE

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • Length:

    33 mm

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Nom:

    3.3 V

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Total Power Output-Max:

    82.5 W

  • Width:

    22.9 mm

iSA48025A033V-001-R Frequently Asked Questions (FAQs)

  • The ISA48025A033V-001-R can operate from -40°C to +85°C, with derating above 60°C.
  • The module should be mounted on a heat sink or a metal plate with a thermal interface material to ensure proper heat dissipation. The recommended heat sink size is 50mm x 50mm x 3mm.
  • The input voltage range for the ISA48025A033V-001-R is 36V to 75V DC.
  • Yes, the ISA48025A033V-001-R is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments.
  • The MTBF rating for the ISA48025A033V-001-R is approximately 1.5 million hours at 40°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

iSA48025A033V-001-R Overview

Use the download button to access the iSA48025A033V-001-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iSA48, or try a keyword search, such as Power Supply Modules
